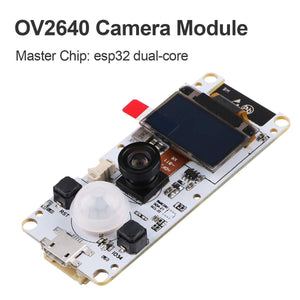

MakerFocus T-Camera ESP32 WROVER OV2640 Camera Module with 0.96 Inch OLED-Fish-Eye Lens

Features:

★Guide Video: https://youtu.be/2KGYH-595H0. Github Link: https://github.com/Xinyuan-LilyGo/esp32-camera-bme280.
★Protocol: Wi-Fi 802.11 b/g/n Bluetooth 4.2 BLE BR/EDR. High sensitivity and low voltage for embedded applications. Standard SCCB interface, compatible with IIC interface.
★Support RGB (RGB565/RGB555), GRB422, YUV (422/420) and YCbCr (422) output formats. Support image zoom, pan and window settings. Support image compression, you can output JPEG image data. Comes with an embedded microprocessor.
★Main chip: esp32 dual-core. Display chip: SSD1306 I2C. Display type: OLED. Display resolution: 128x64. Camera Resolution: 2 Megapixel (two million). Camera (camera model): OV2640.

Specifications:

Master Chip: esp32 dual-core
Protocol: Wi-Fi 802.11 b/g/n & Bluetooth 4.2 BLE & BR/EDR
Flash: 4MBytes
SPRAM: 4MBytes
Display chip: SSD1306 I2C
Display type: OLED
Display resolution: 128x64
PIR: AS312
Uart Chip: CP2104
Charging chip: IP5306 I2C
Camera: OV2640
Camera Resolution: 2Megapixel
Environmental Sensor: BME280

Packing List:

1 * ESP32-WROVER-B OV2640 Camera Module
