AI Camera Module Video Recorder Programmable Camera M5stack Unit-V Webcam OV2640 2 Megapixel 16M
Brand: MakerFocus
UPC: 673400200365
Description:
UNIT-V AI Camera has dual-core 64bit CPU and state-of-art neural network processor. It integrates with machine vision capabilities, featuring the unprocessed acceptability to AI Visioning with high energy efficiency and low cost.
Features:
Dual-Core 64-bit RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
Dual Independent Double Precision FPU
8MiB 64bit width On-Chip SRAM
Neural Network Processor / 0.8Tops
Programmable IO Array
AES, SHA256 Accelerator
Direct Memory Access Controller
Support Micropython and firmware encryption
Support TF card to expand memory
On-board Hardware Resources:
Flash: 16M
Camera :OV2640
Button: button * 2
Indicator light: RGB LED
External storage: TF card/Micro SD
Interface: PH2.0/compatible GROVE
Case Material: PC + ABS
About OV2640:
Output Formats(8-bit):
YUV(422/420)/YCbCr422
RGB565/555
8-bit compressed data
8-/10-bit Raw RGB data
Maximum Image Transfer Rate according to specific format
UXGA/SXGA: 15fps
SVGA: 30fps
CIF: 60fps
Scan Mode: Progressive
Camera specifications:
CCD size : 1/4 inch
Field of View : 65 degree
Maxmium Pixel: 2M
Applications:
Face recognition/detection
Object detection/classification
Obtaining size and coordinates of the target in real-time
Obtaining the type of detected target in real-time
Shape recognition
Video recorder
Package Including:

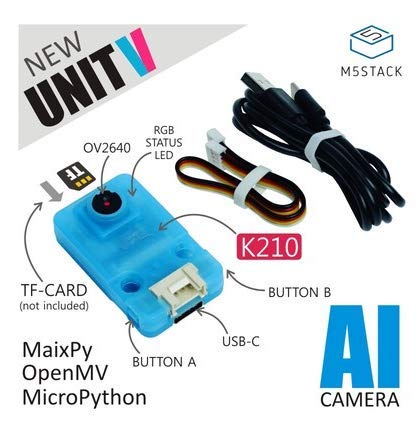

1 * M5Stack UNIT-V AI Camera
1 * Type-C USB Cable
1 * 20cm 4P cable
