M5Stack M5StickC ESP32 Mini IoT Development Board for Arduino MicroPython and UIFlow Programming
Description:
M5StickC is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.
What it can do?
This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.
Power on / off:
Power on: Click the reset button
Shutdown: Double the reset button

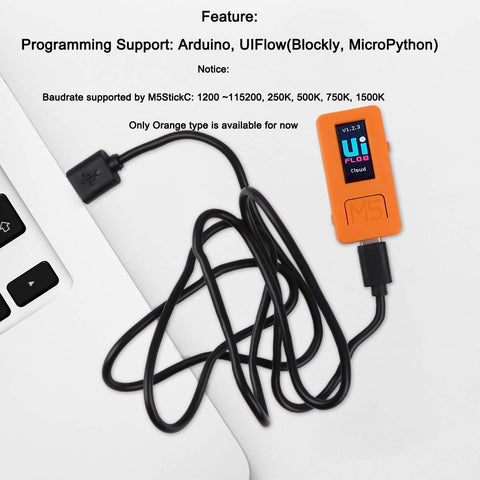

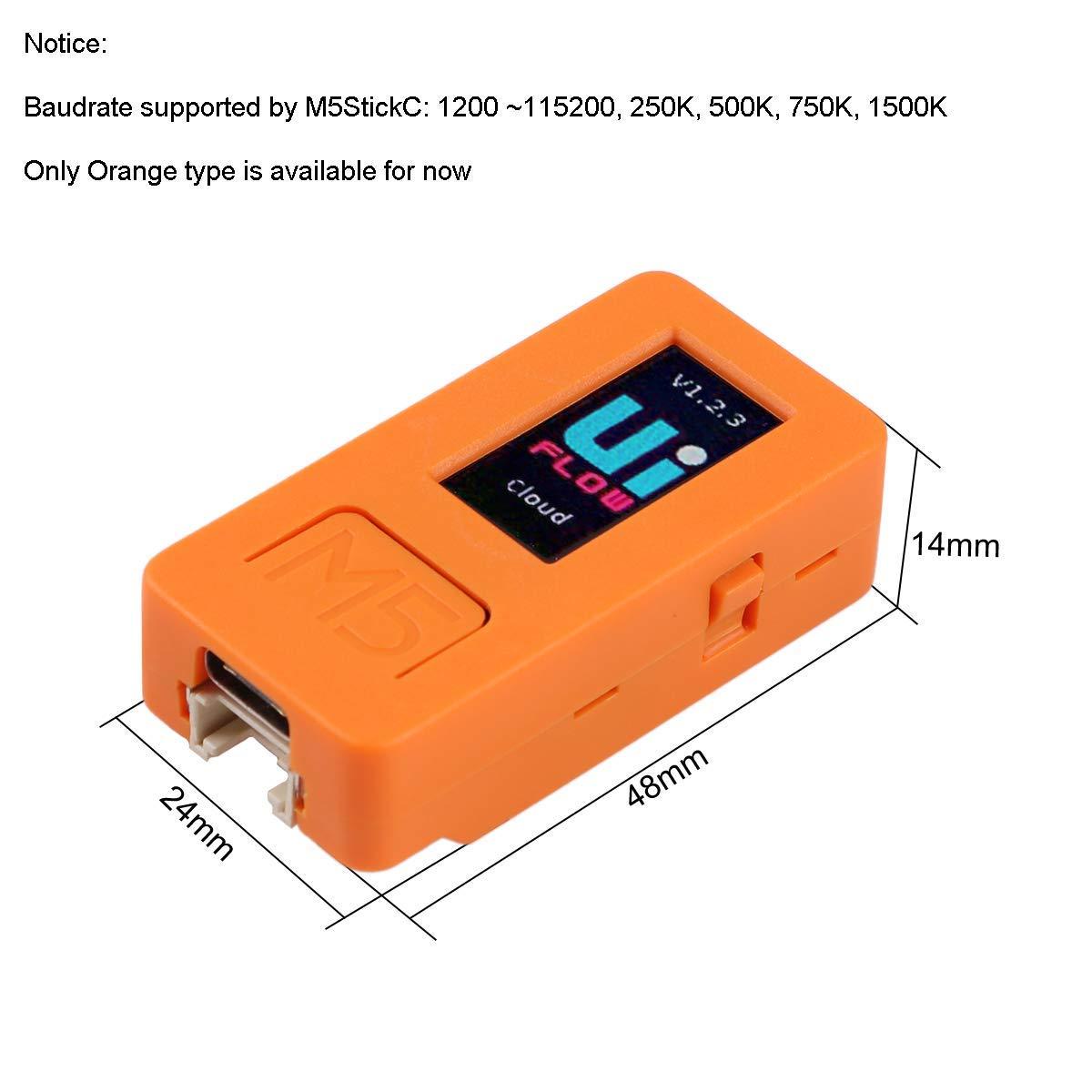

Notice:
Baudrate supported by M5StickC: 1200 ~115200, 250K, 500K, 750K, 1500K
Only Orange type is available for now
If you find out your M5StickC couldn’t power on without a USB in, it might because the battery enter the battery protection mode, caused by low-volatge, over-charged, ver-heat … To exit the battery protection mode, please keep charging the battery for around 40 mins. Our team is working on the solution.

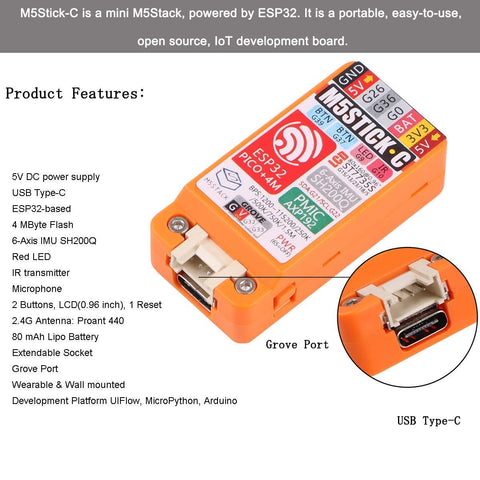

Features:
5V DC power supply
USB Type-C
ESP32-based
4 MByte Flash
6-Axis IMU SH200Q
Red LED
IR transmitter
Microphone
2 Buttons, LCD(0.96 inch), 1 Reset
2.4G Antenna: Proant 440
80 mAh Lipo Battery

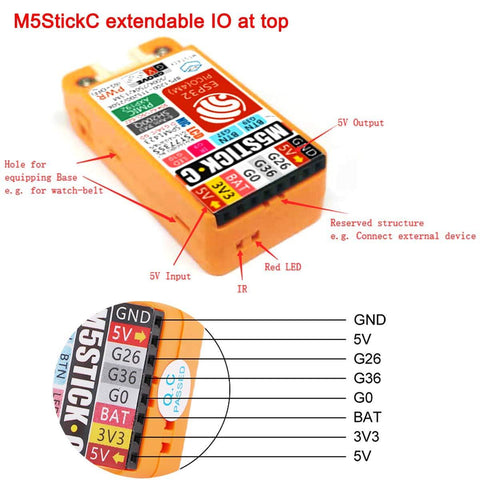

Extendable Socket
Grove Port
Wearable & Wall mounted
Development Platform UIFlow, MicroPython, Arduino
ESP32 Features:
240MHz dual core Tensilica LX6 microcontroller with 600DMIPS
Integrated 520KB SRAM
Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
Hall sensor
10x capactive touch interface
32kHz crystal oscillator
PWM/timer input/output available on every GPIO pin
SDIO master/salve 50MHz
SD-card interface support

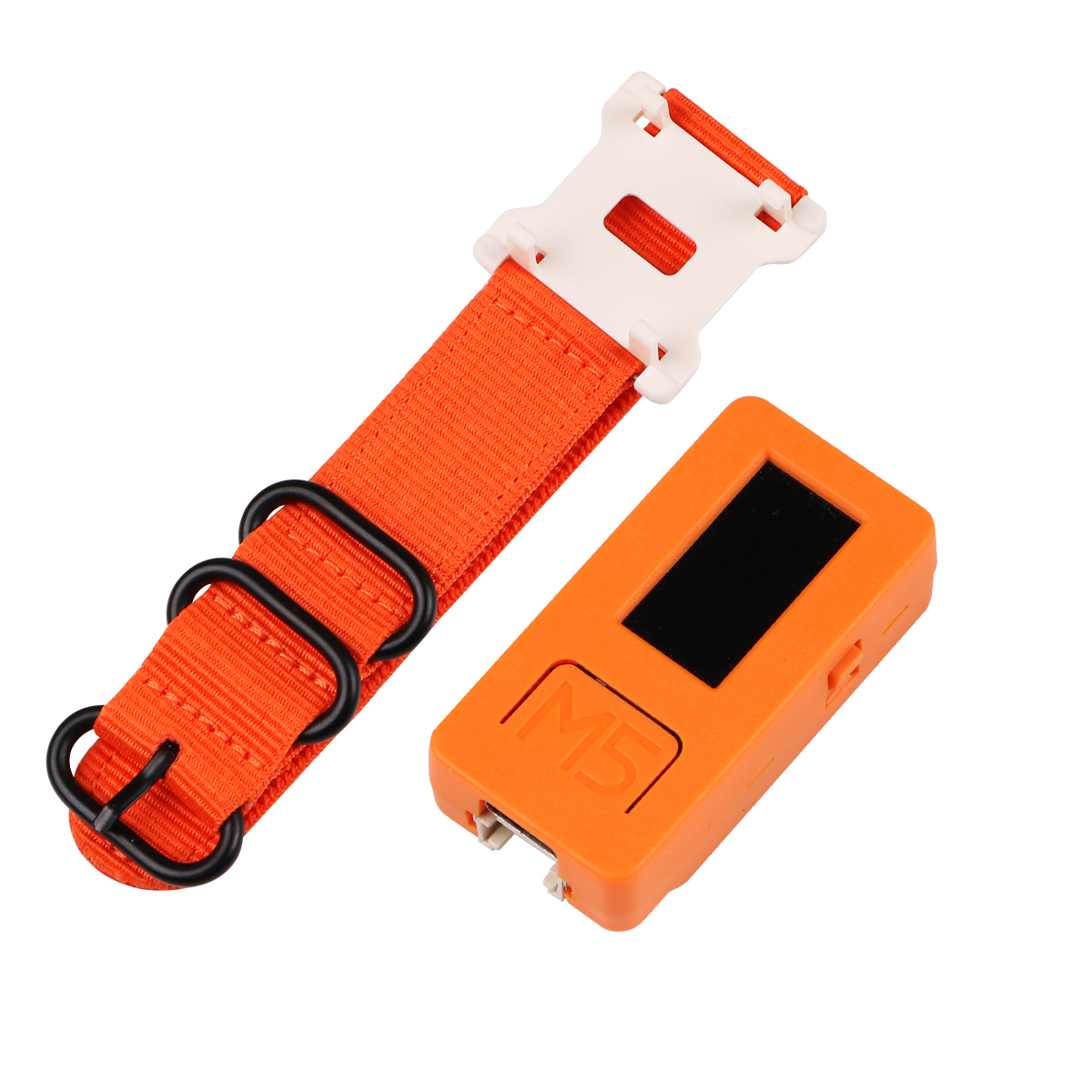

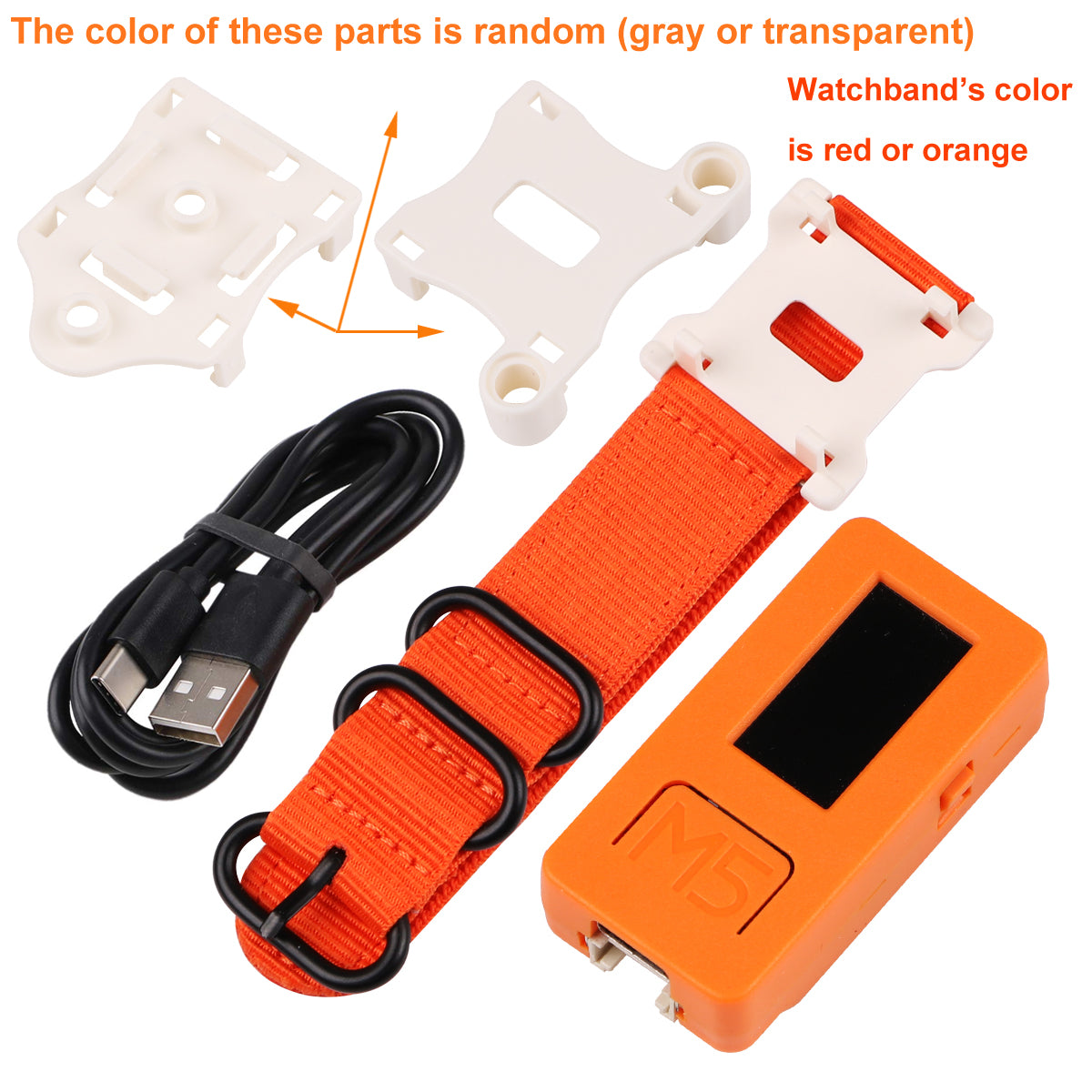

Packing List:
1 * M5Stack ESP32 Mini IoT Development Board M5StickC (Built in 80mAh Battery)
1 * Watch belt
1 * Wall/1515
1 * Brick
1 * USB Type-C cable
