9G M5Stack Micro Servo Motor Kit 360 Degree with Metal Gear Le Go Stand for Arduino and UIFl
MakerFocus Servo Motor 9G M5Stack Micro Servo Motor Kit 360 Degree with Metal Gear Compatible with Le Go Stand for Arduino and UIFlow
[LE GO compatible]: Servo Kit 360° is a 9g servo with LE GO compatible fixed bracket. The independent design of the fixed bracket can be easily disassembled, and the product is completely designed according to the LE GO standard unit,so that you can easily combine with LE GO series products, play unlimited creativity. Video: https://drive.google.com/file/d/1_uDCJ8pXL-g1Z96bVxbxE2CNpZX6vIdN/view?usp=sharing
[Easy to Program]: The rudder plate is redesigned, it can be directly connected with LE GO parts. It is very easy for beginners to use. Even if you don't know how to program, you can easily drive it with UIFlow. Instructions: https://drive.google.com/file/d/1uD1zVQr55at2IwC2kwlq1Yzg1XbHD3Xe/view?usp=sharing

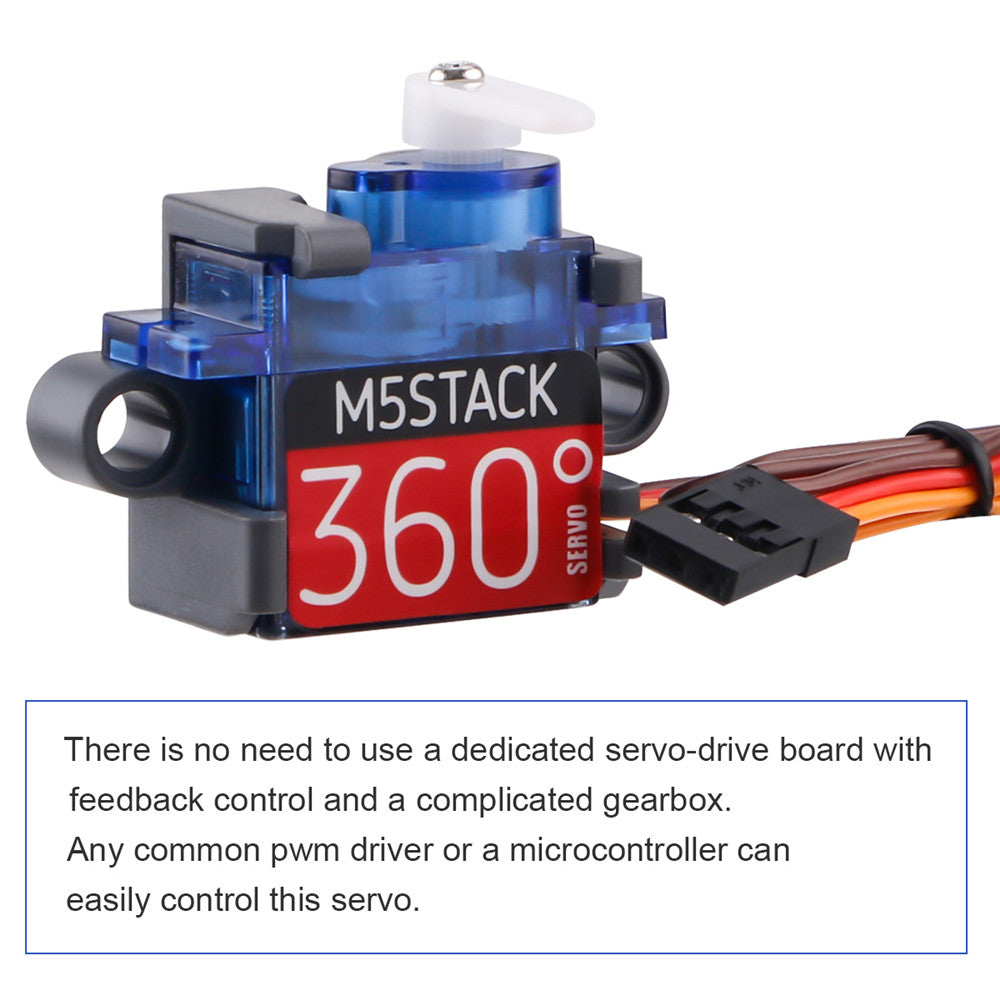

[Simple Using]: There is no need to use a dedicated servo-drive board with feedback control and a complicated gearbox. Any common pwm driver or a microcontroller can easily control this servo. Compared to driving a stepper motor, a servo is much simpler to use.
[Application]: You can use it to do interesting small projects requiring angular movement. If you feel that the cable is not long enough, you can purchase the servo extension cable to extend it. The yellow wire is for the control signal, brown is for the ground, and the red wire is for the Vcc (voltage).
[Note]: 360° servo can't control the angle, but you can adjust the speed and direction by controlling PWM. When using the servo, pay attention to the power supply current and voltage to prevent burnout.
Product description
Description:

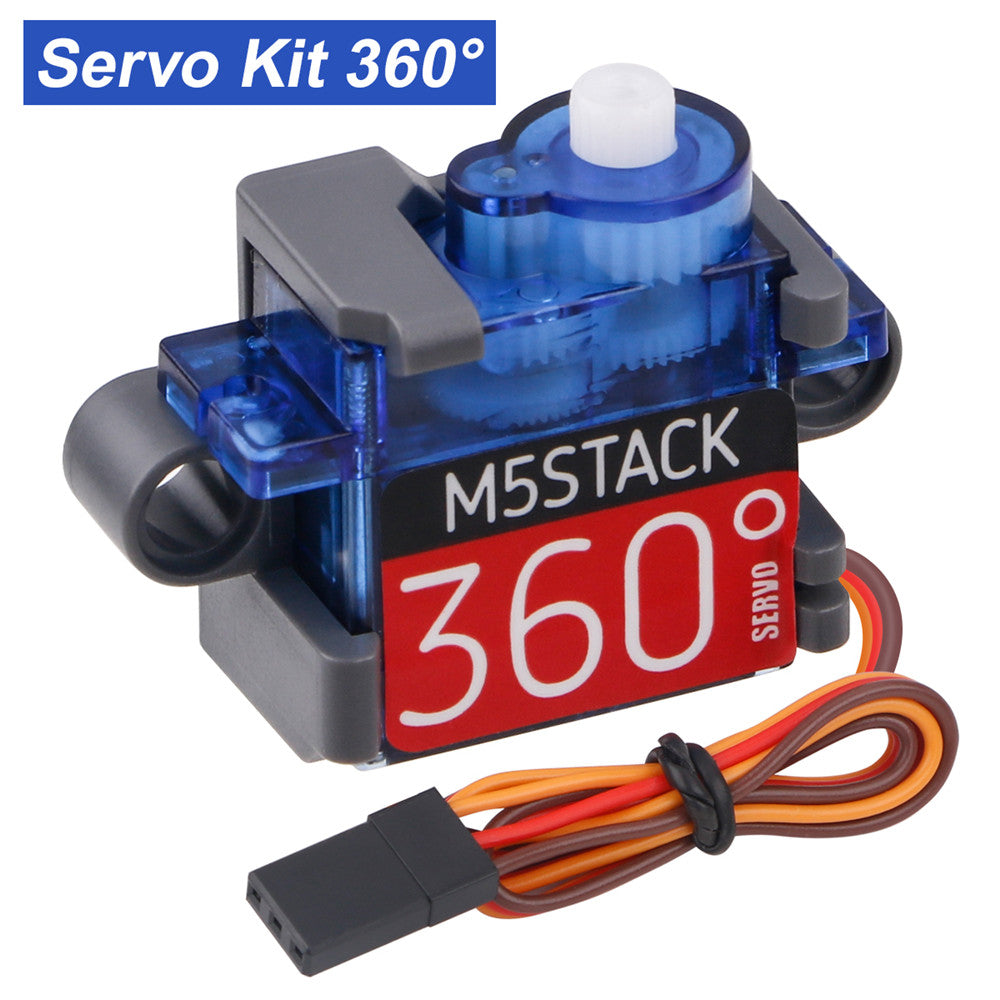

M5Stack Servo Kit 360°
Instructions:https://drive.google.com/file/d/1uD1zVQr55at2IwC2kwlq1Yzg1XbHD3Xe/view?usp=sharing

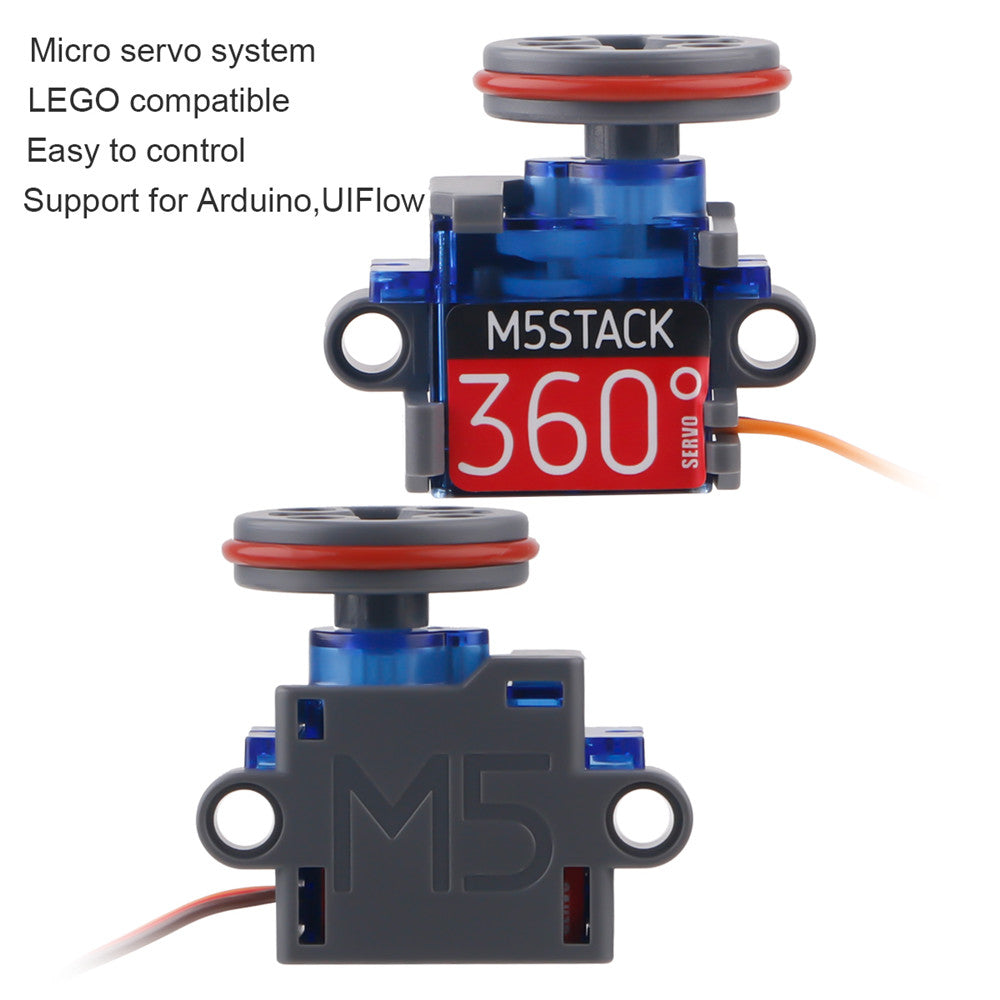

Features:
Micro servo system
LE GO compatible
Easy to control
Support for Arduino and UIFlow
Specification:
Resources: Parameter

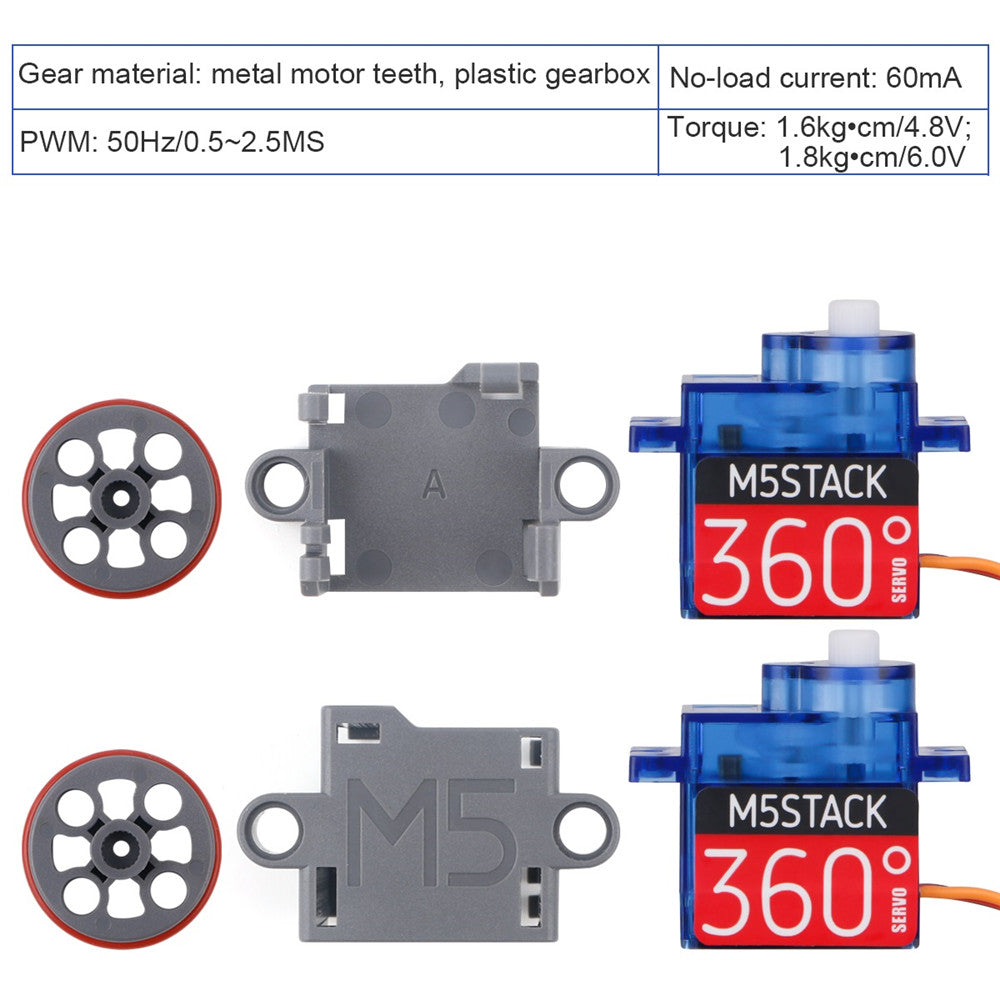

Gear Material: Metal motor teeth, plastic gearbox
PWM: 50Hz / 0.5~2.5MS
Servo Weight: 9g
Locked Rotor Current: 750mA
No-load Current: 60mA
Torque: 1.6kgcm / 4.8V; 1.8kgcm / 6.0V
360° Servo Speed: 0.1sec / 60° / 4.8V; 0.09sec / 60° / 6.0V

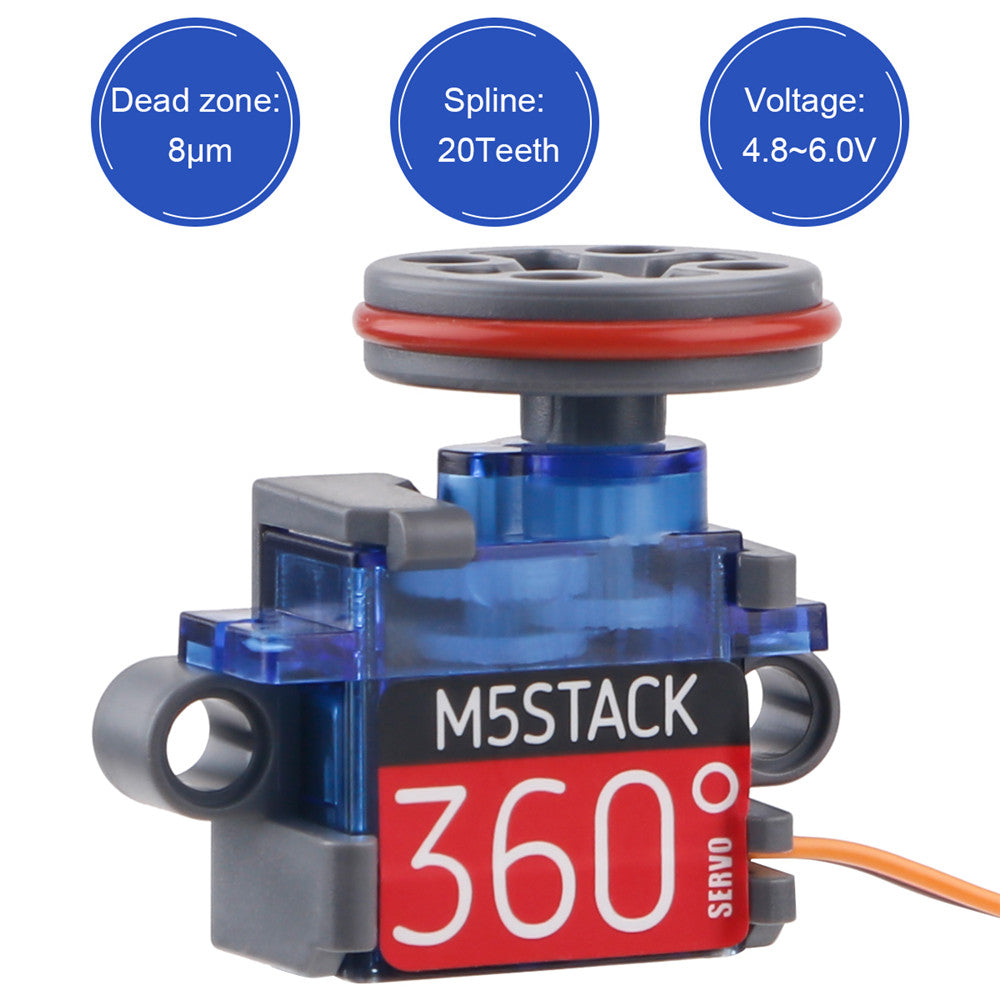

Dead Zone: 8μm
Voltage: 4.8~6.0V
Spline: 20Teeth
Cable Length: 3cm
Net Weight: 44g

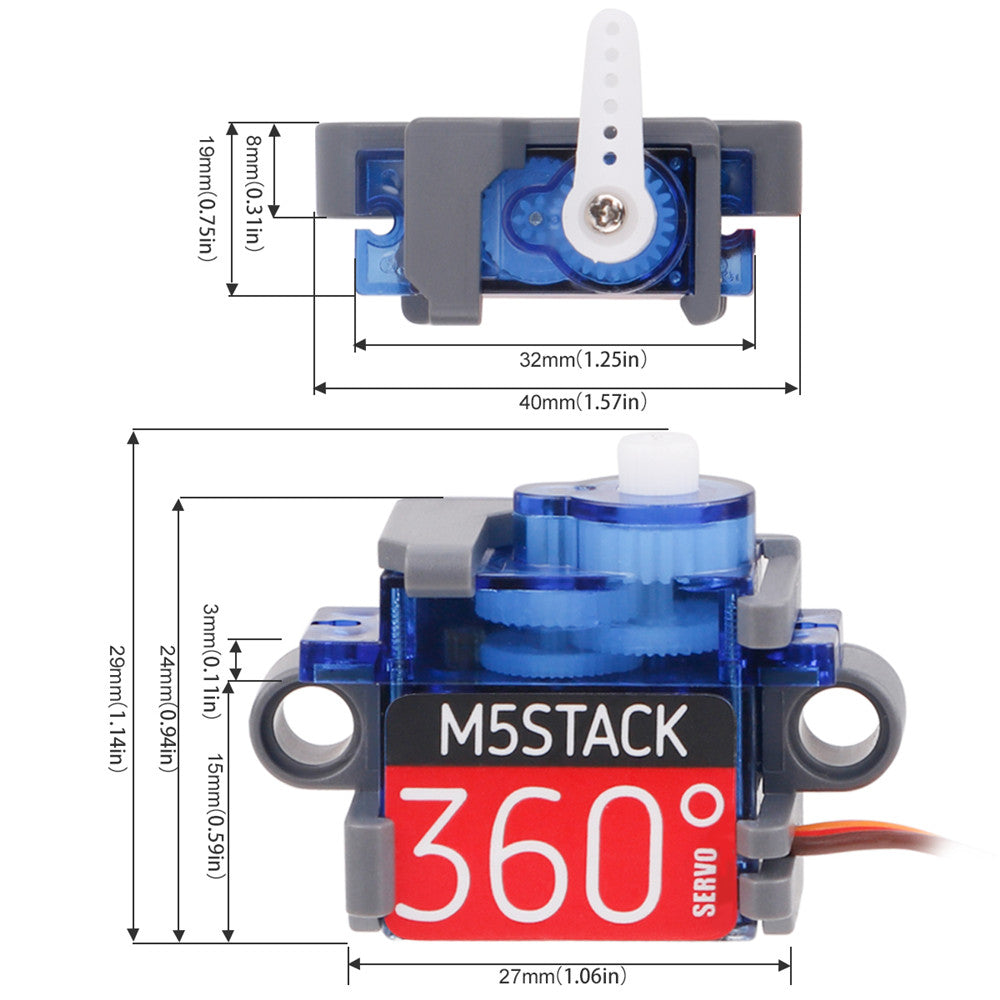

Product Size: 40 * 12 * 36mm

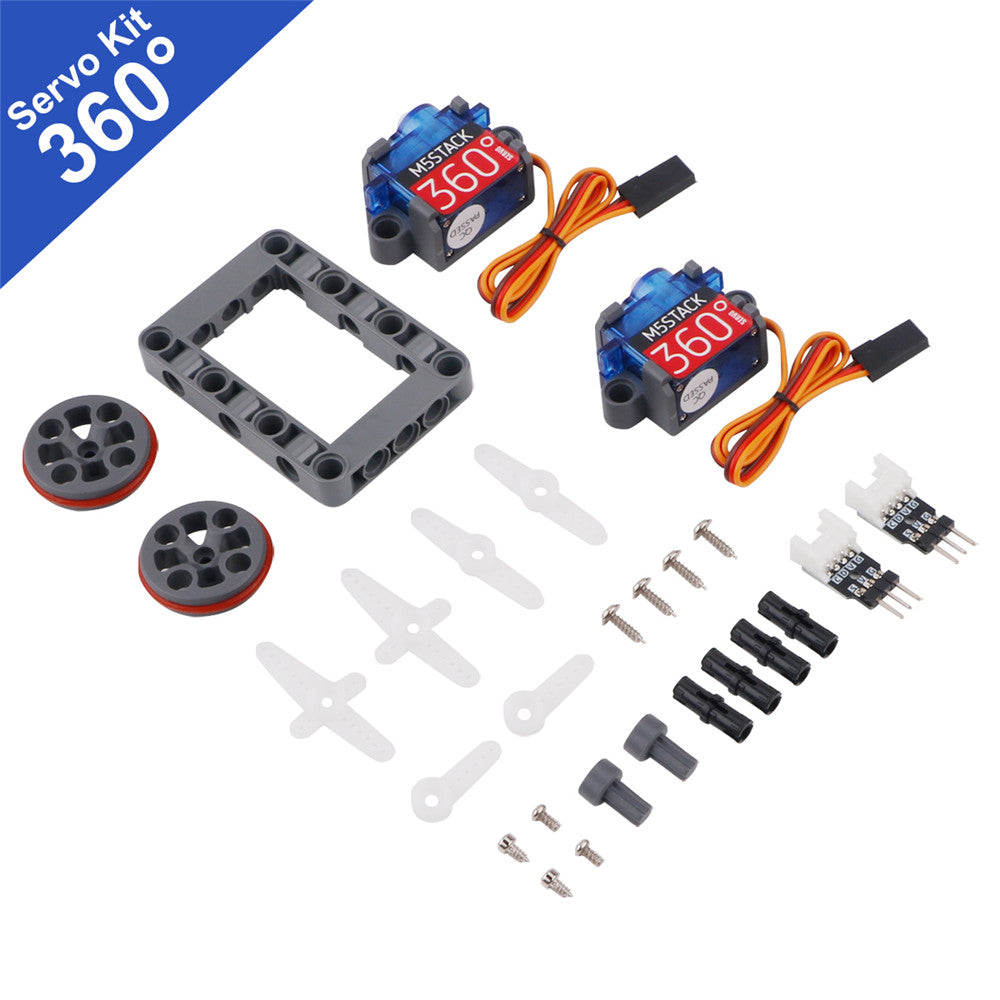

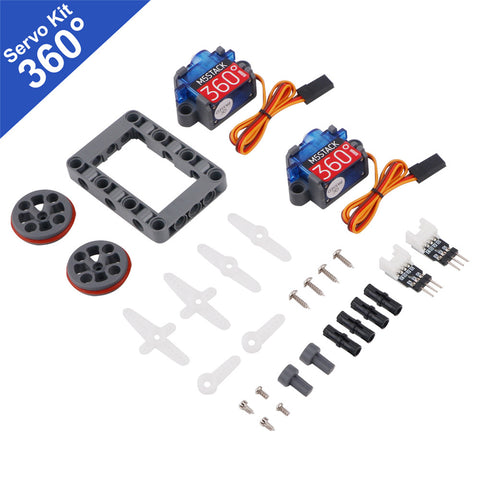

Package Including:
2 * SG90 Servo 360°
2 * GROVE2SERVO adapter
2 * Elastic
2 * Fixed base of servo
2 * Special steering wheel
2 * Axle connector
4 * Conncetor peg with friction
1 * Frame 5x7-module
2 * Servo accessories package
2 * M2*4mm self tapping screw
