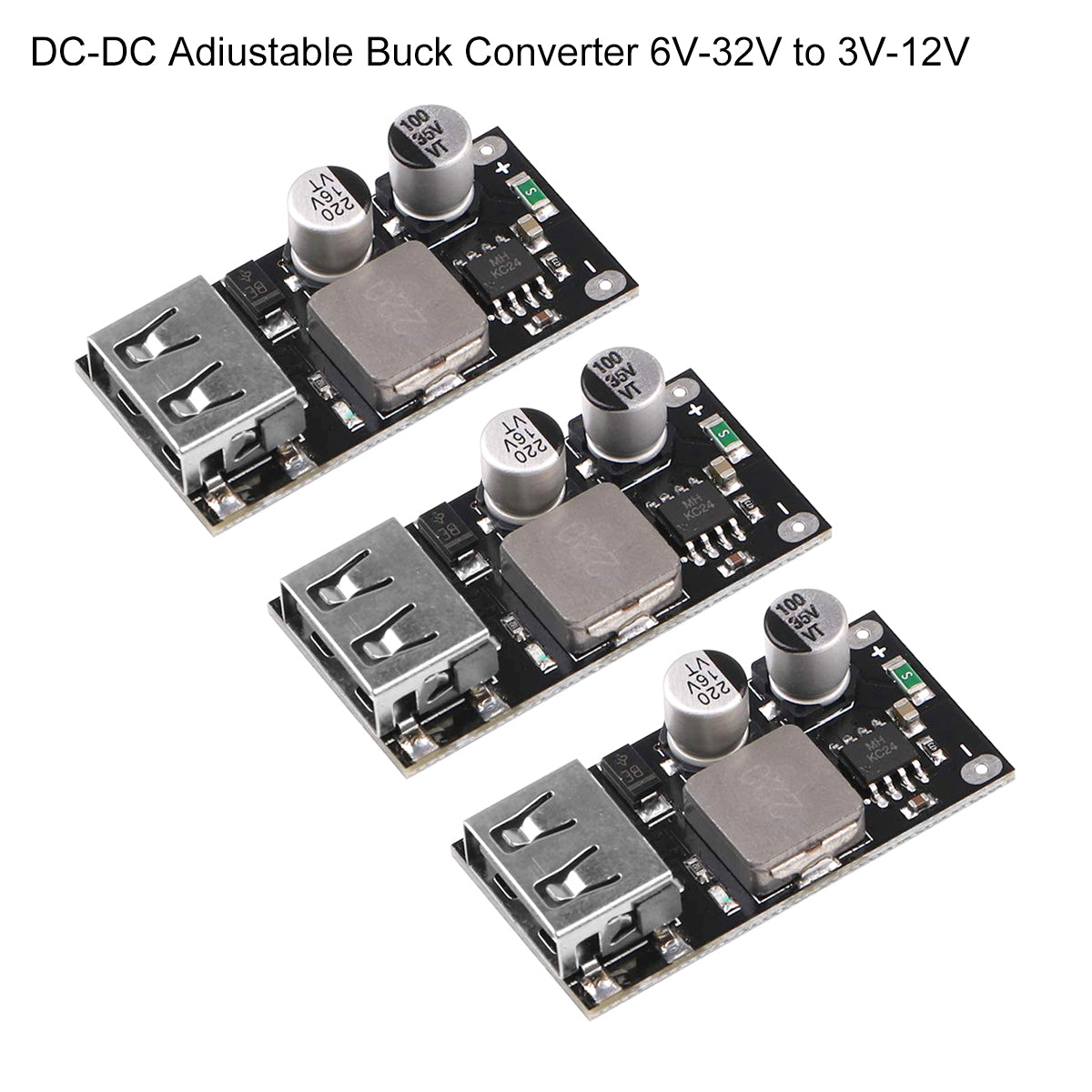

3pcs DC-DC Adjustable Buck Converter 6V-32V(12 24V) Power Buck Module to QC3.0 Fast Charging

Note: Do not exceed the specified output input voltage when using the board.
√ Input voltage range: 6V-32V, Output voltage: default 5V, automatic adjustment between 3-12V after fast charge.
√ Support protection: input overvoltage, undervoltage protection, input overcurrent, output overcurrent and short circuit,machine overtemperature.
√ Support multiple fast charging protocols: Solar panel to mobile phone charging, car charging retrofit, driving recorder power supply, home power conversion,smart plug modification, fast charge adapter.
√ Support multiple fast charging protocols: DCP, BC1.2, i-Phone, Sam-sung, Qualcomm QC2.0 and QC3.0, MTK PE1.1/PE2.0, Hua-wei AFC, FCP/SCP, Spreadtrum SFCP.

Product description
3pcs DC-DC Adjustable Buck Converter 6V-32V(12 24V) Power Buck Module To QC3.0 Fast Charging Single USB Step Down Power Supply Converter for Ip-hone Hua-wei FCP

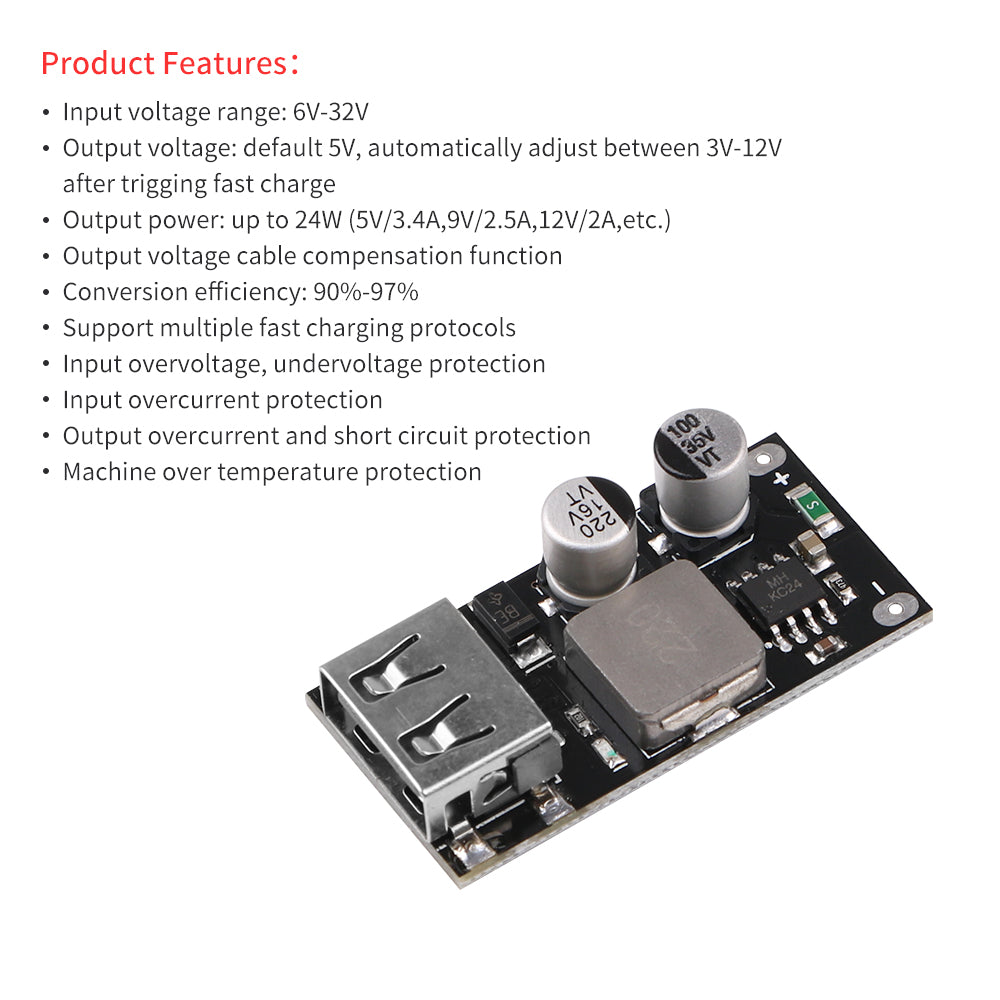

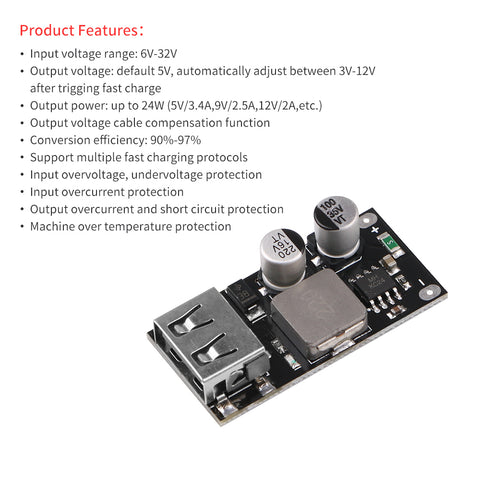

Product Features
Input voltage range: 6V-32V
Output voltage: default 5V, automatically adjust between 3V-12V after trigging fast charge
Output power: up to 24W (5V/3.4A,9V/2.5A,12V/2A,etc.)
Output voltage cable compensation function
Conversion efficiency: 90%-97%
Support multiple fast charging protocols
Input overvoltage, undervoltage protection
Input overcurrent protection
Output overcurrent and short circuit protection
Machine over temperature protection

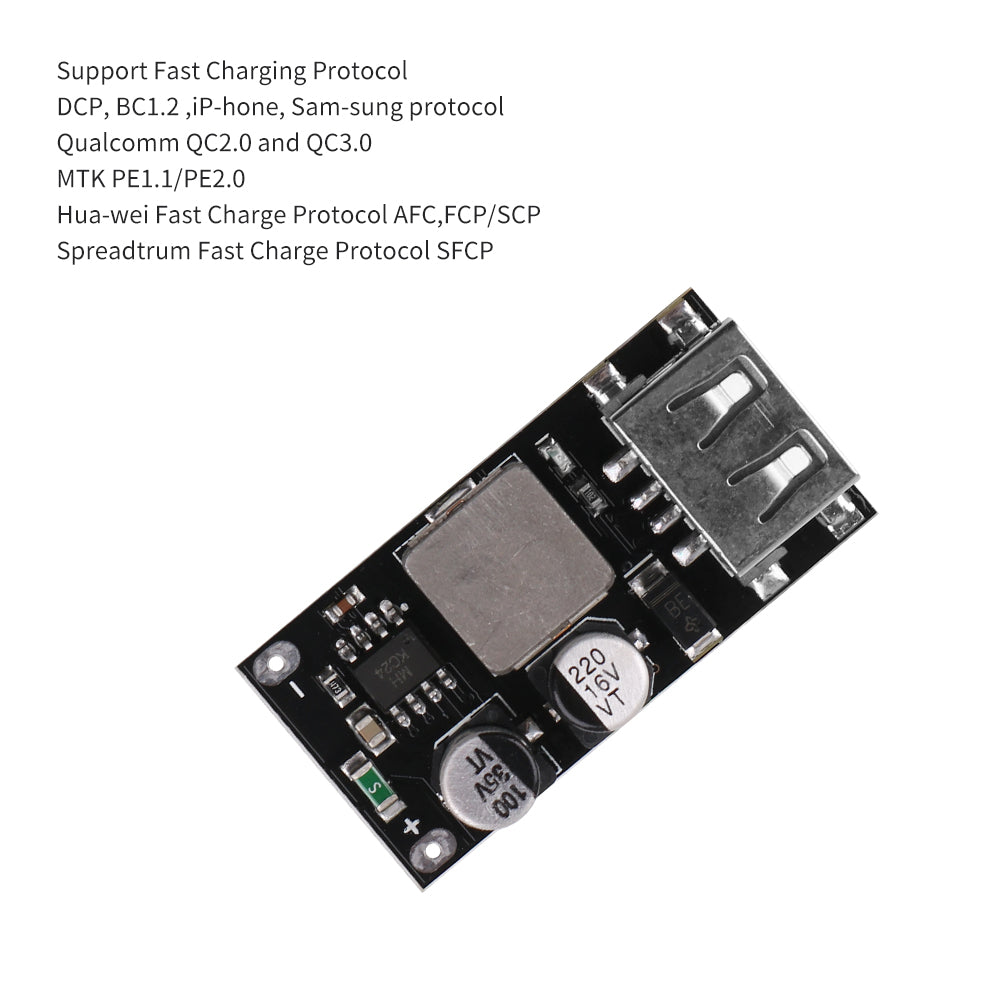

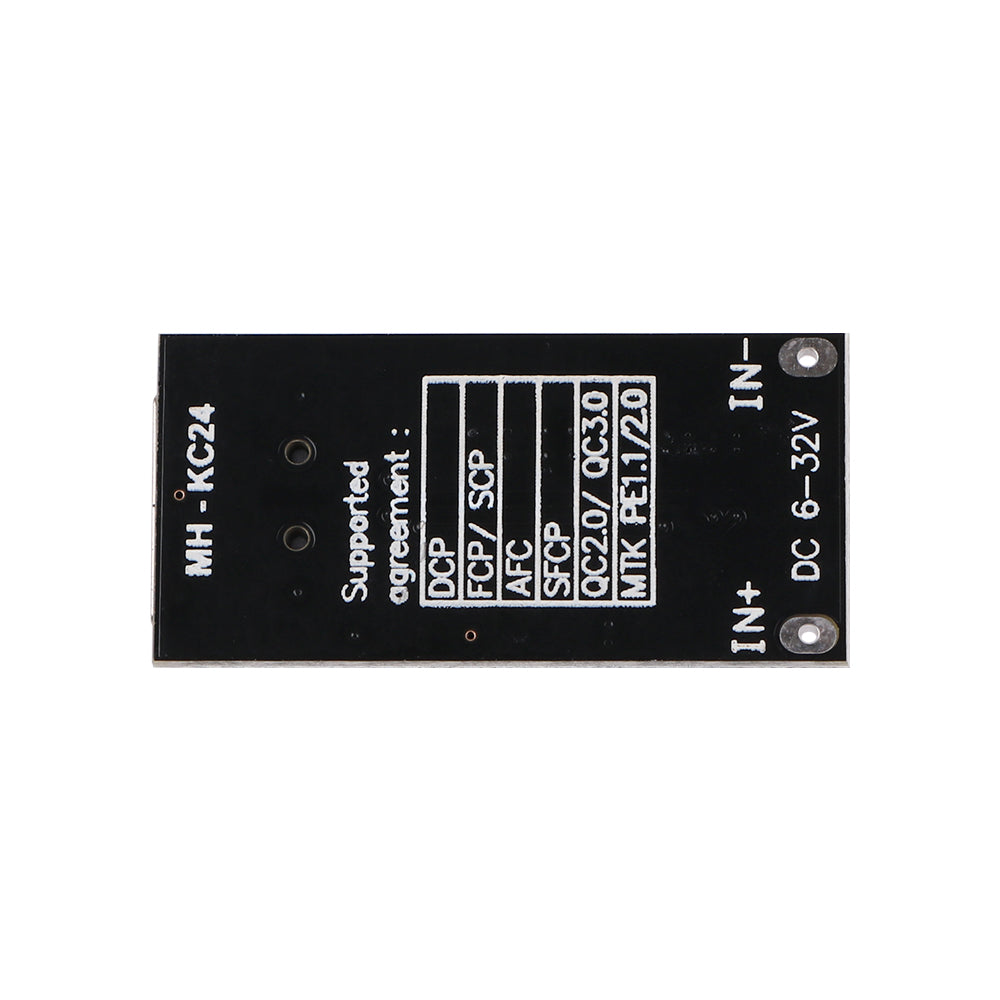

Support Fast Charging Protocol
DCP, BC1.2 ,iP-hone, Sam-sung protocol
Qualcomm QC2.0 and QC3.0
MTK PE1.1/PE2.0
Hua-wei Fast Charge Protocol AFC,FCP/SCP
Spreadtrum Fast Charge Protocol SFCP

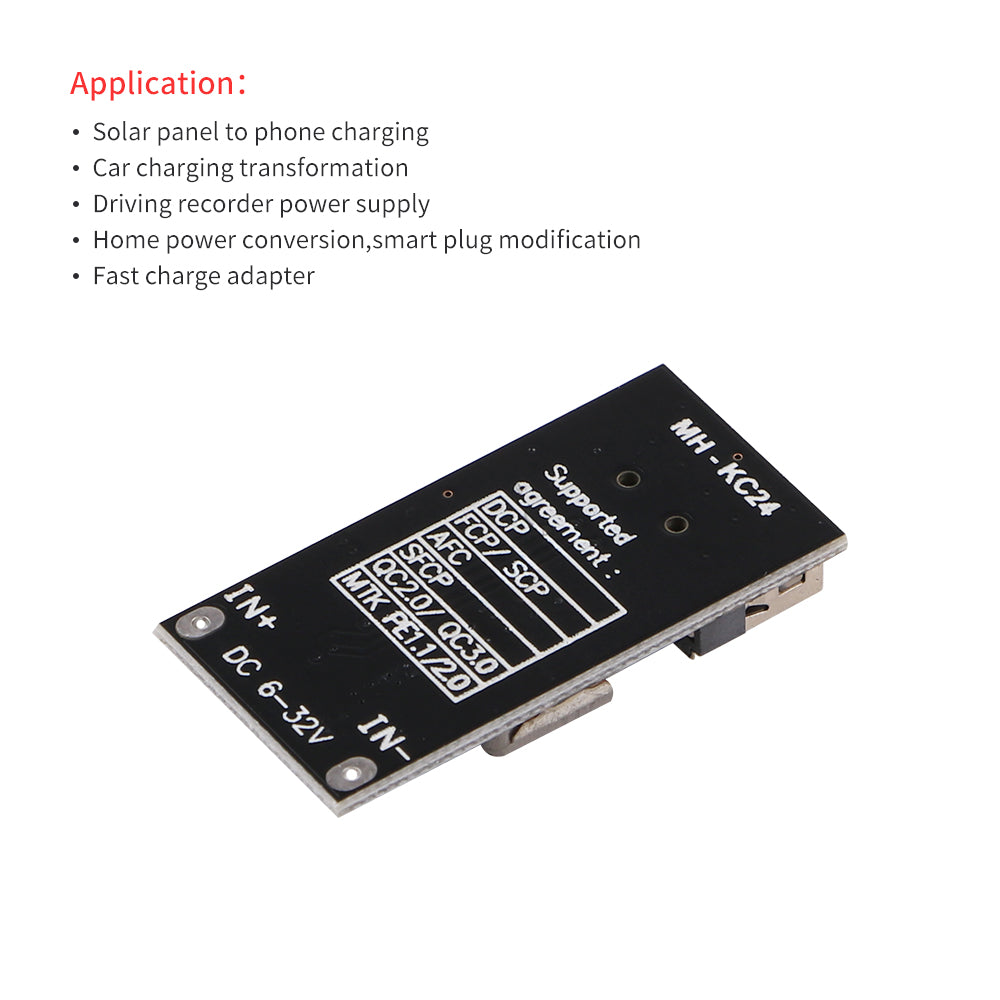

Application
Solar panel to phone charging
Car charging transformation
Driving recorder power supply
Home power conversion,smart plug modification
Fast charge adapter

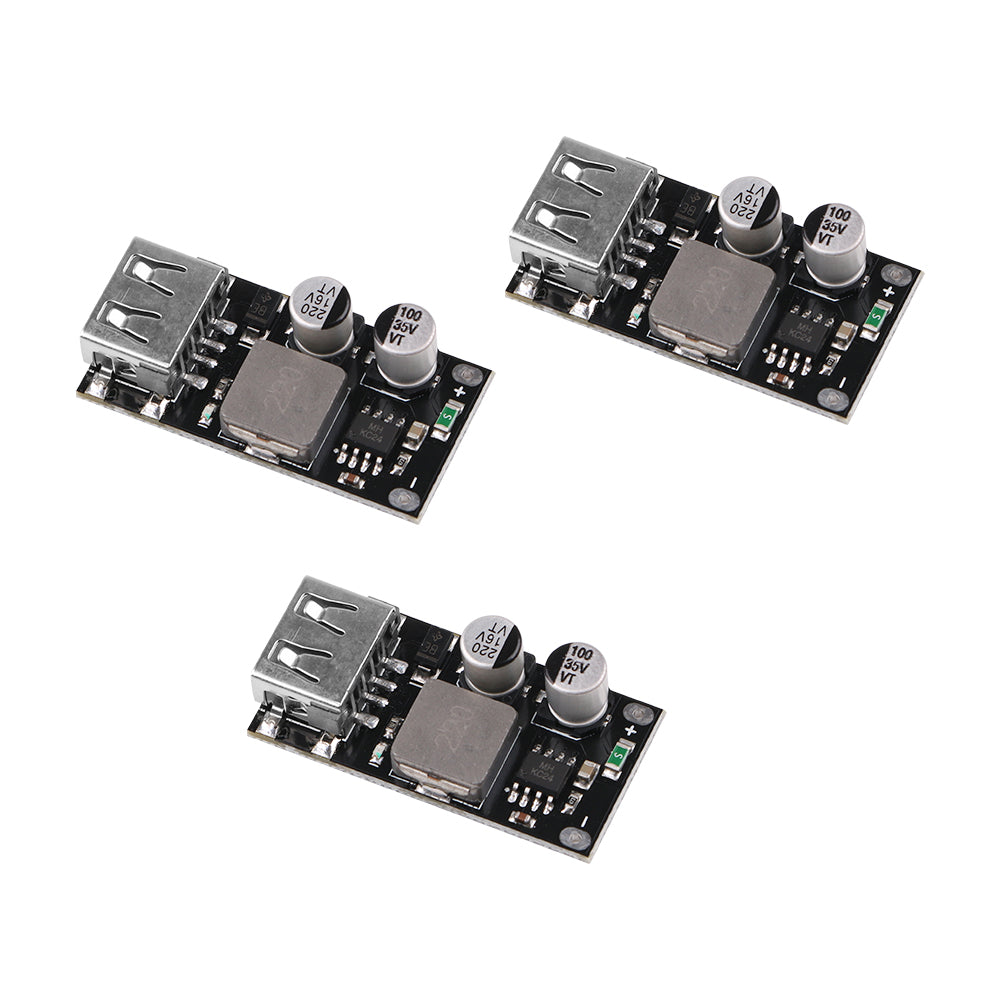

Package Including
3 * DC-DC step-down USB charging module
