M5STACK TOUGH K034 Development Board Kit

M5Stack TOUGH is an industrial grade programmable embedded controller. Using ESP 32 main control chip, integrated Wi-Fi and Bluetooth dual-mode solution, equipped with dual-core low-power X tensa 32-bit LX6 microprocessor, main frequency up to 240MHz. Onboard 8M PSRAM + 16M flash memory combination, integrated 2.0 inch full-color high-definition IPS display panel + high-sensitivity capacitive touch panel + rich peripherals, extended interface. Complex industrial application scenarios, as the full-coverage shell is dust and water resistant. The controller is suitable for application scenarios such as industrial field control, intelligent buildings, and outdoor data acquisition nodes.

Structural design:

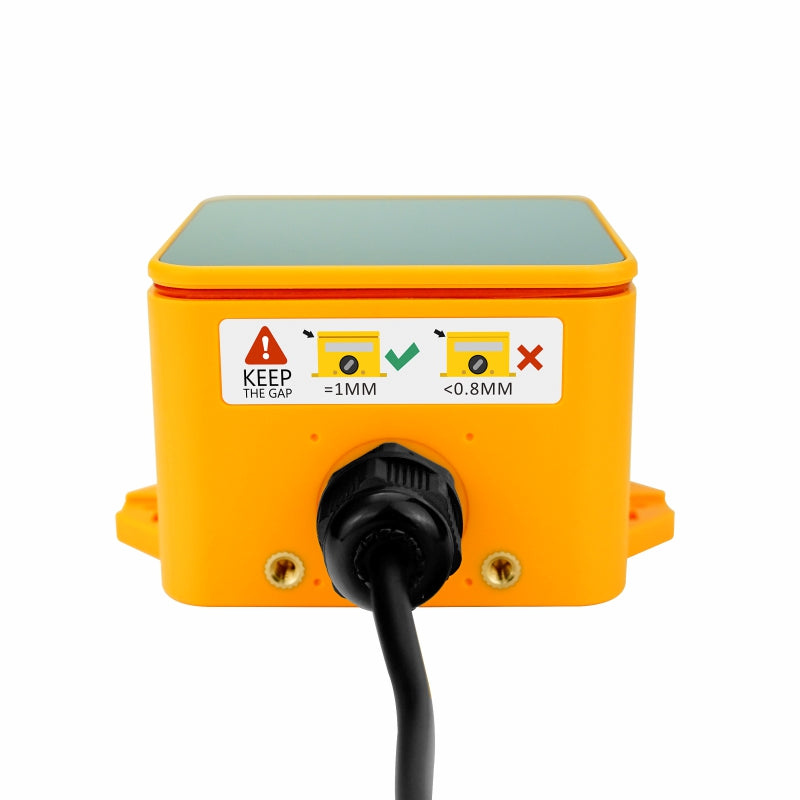

With a waterproof design, waterproof O-rings are attached to the upper and lower body to prevent dust from entering.
Housing made of UV-resistant plastic

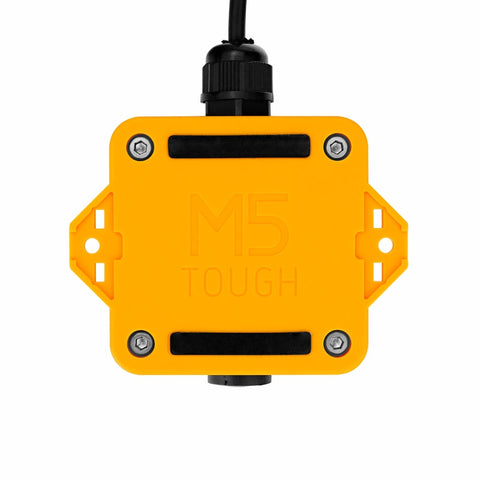

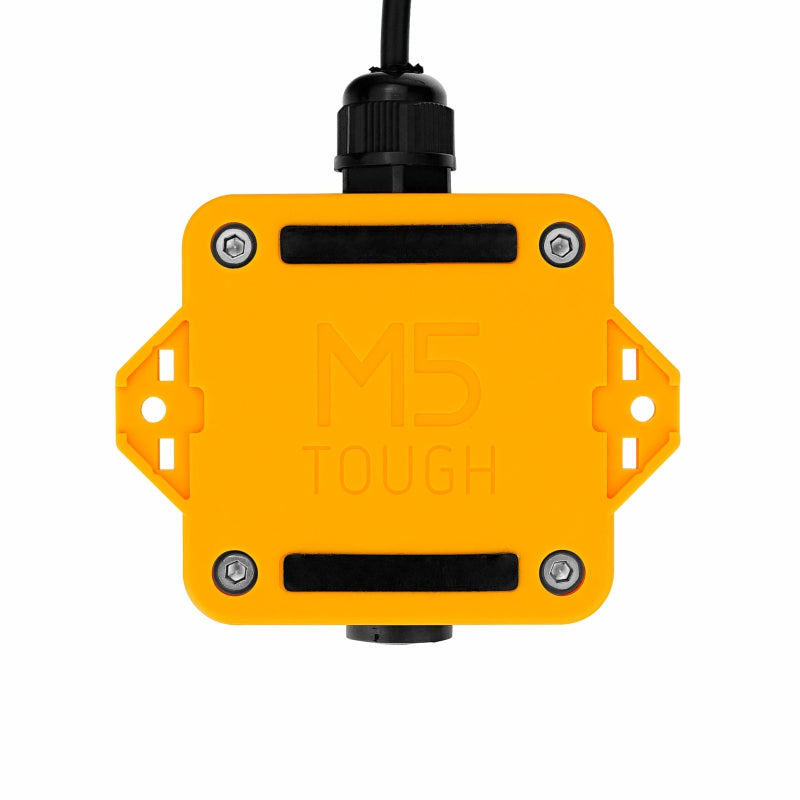

Supports various deployment methods, screws, strips, magnetic attraction, and adhesives
2 reserved M12 waterproof ports on top and bottom

Advanced integration:

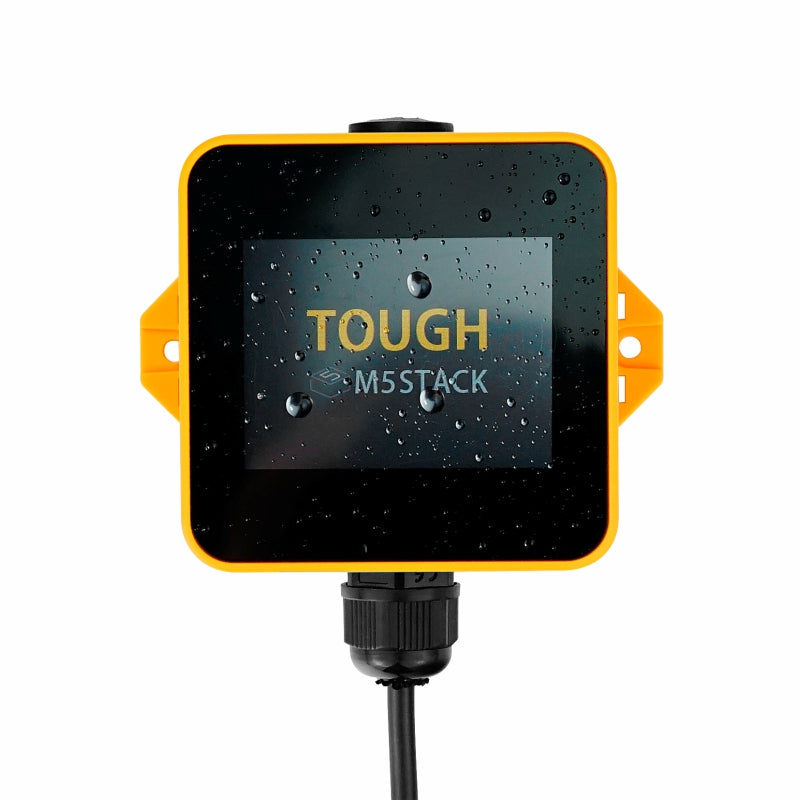

2.0-inch IPS display panel, supports 2-point touch panel
NS4168 16-bit I2S amplifier + 1W speaker
Onboard TFCard slot
AXP192 power management chip + HY8563-RTC clock -> low power power solution, support RTC timing wakeup
Professionally modulated to provide stable and reliable communication quality

Strong scalability:

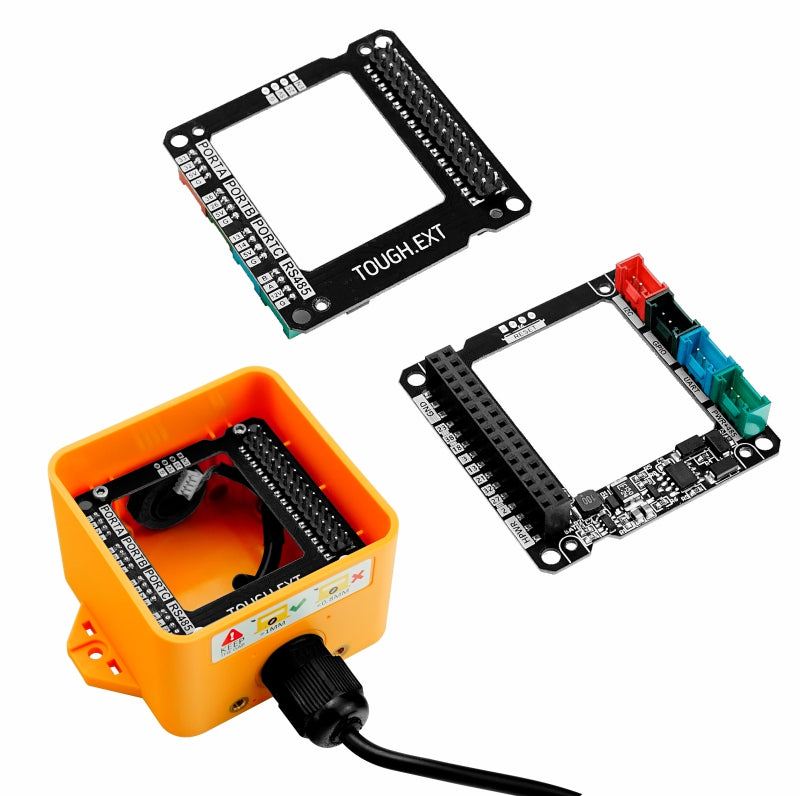

Built-in function expansion board by default
Integrated 12v->5VDC DC step-down circuit, flexible power supply
RS485 conversion circuit
PortA, B, C /3xGrove expansion ports
Easy access to M5Stack's software and hardware systems, plug-and-play sensor expansion

Low-code development:
UIFlow graphical programming platform, script, compile-free, support cloud push
Fully compatible with mainstream development platforms such as A r d u i n o and ESP 3 2-IDF
Support FreeRTOS with the help of dual-core and multitasking mechanisms, efficiently organize task logic and optimize program execution efficiency


Product features:

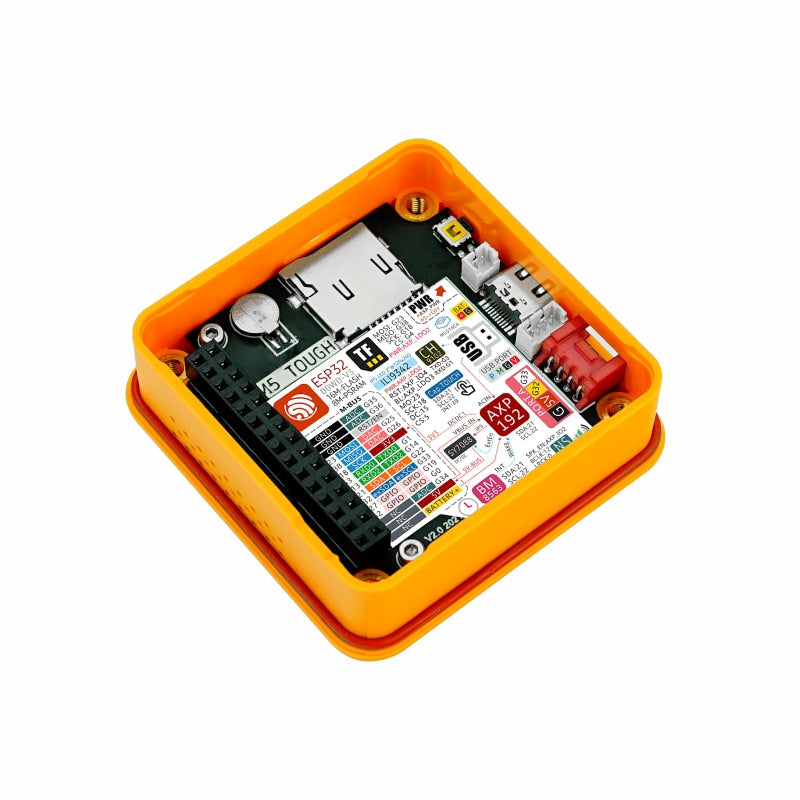

ESP 3 2-D0WD-V3
16MB Flash + 8MBPSRAM
Dust-proof, waterproof, and UV-resistant plastic housing
2-inch full-color IPS display panel + capacitive touch screen, supports 2-point touch
Low power consumption, supports timed wakeup
Built-in 12v->5VDCDC step-down circuit, more flexible power supply
RS485/I2C/GPIO/UART interface
Development platform: Arduino, UIFlow, ESP-IDF

Specification:

Package included:
1x M5Stack TOUGH
1x Type-C USB (1m)
1x 2.5mm hex wrench
1x 1.25-2P single-ended terminal wire
1x 1.25-4P single-ended terminal wire
1x  Waterproof O-ring
