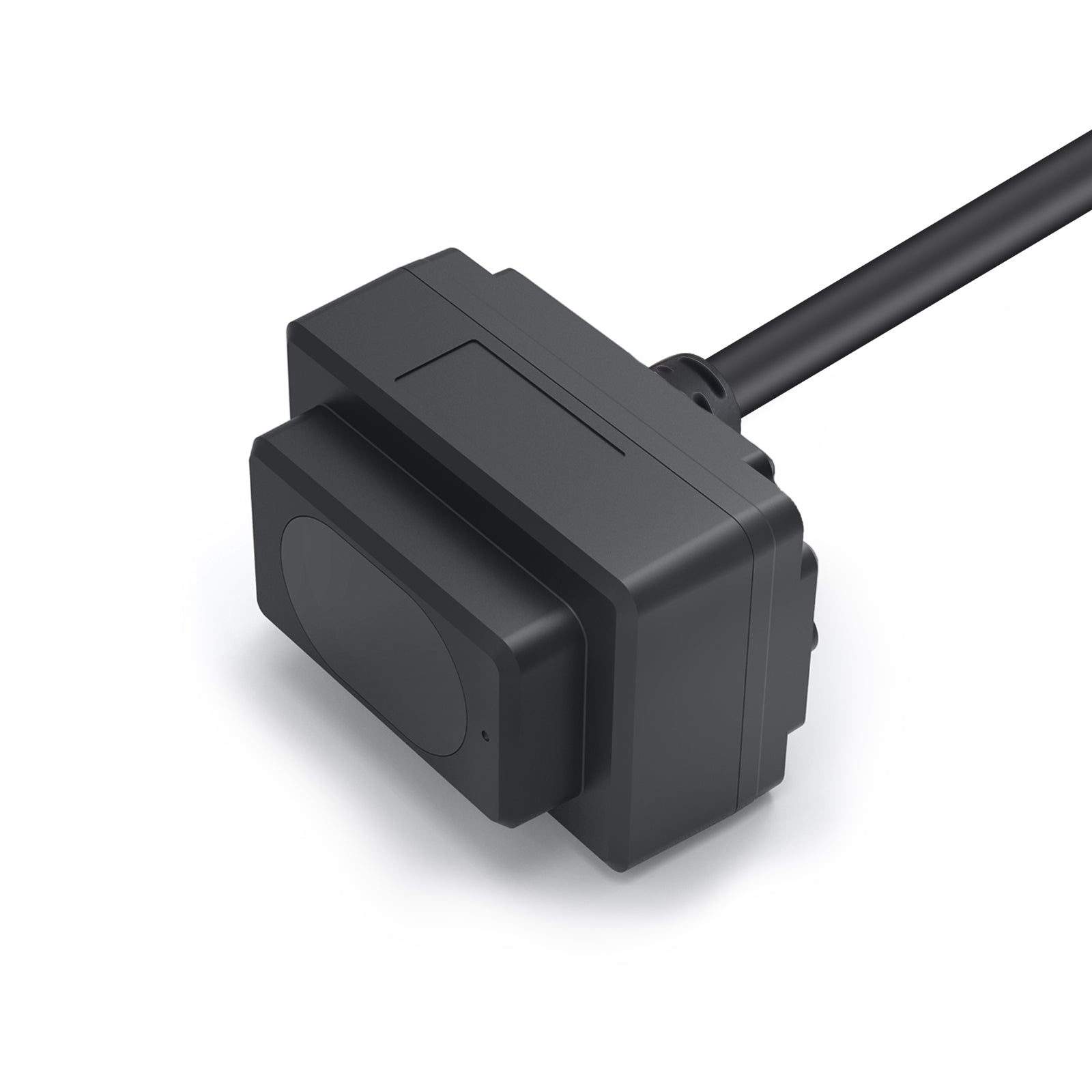

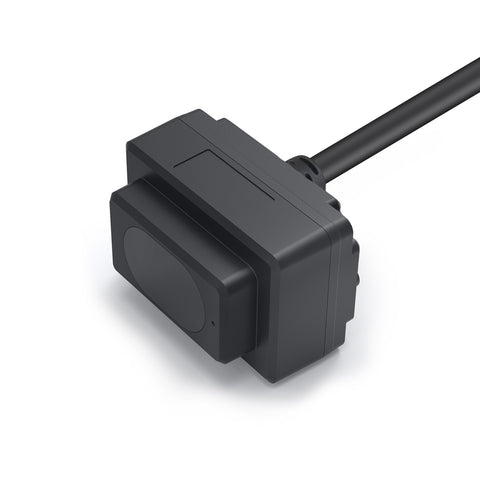

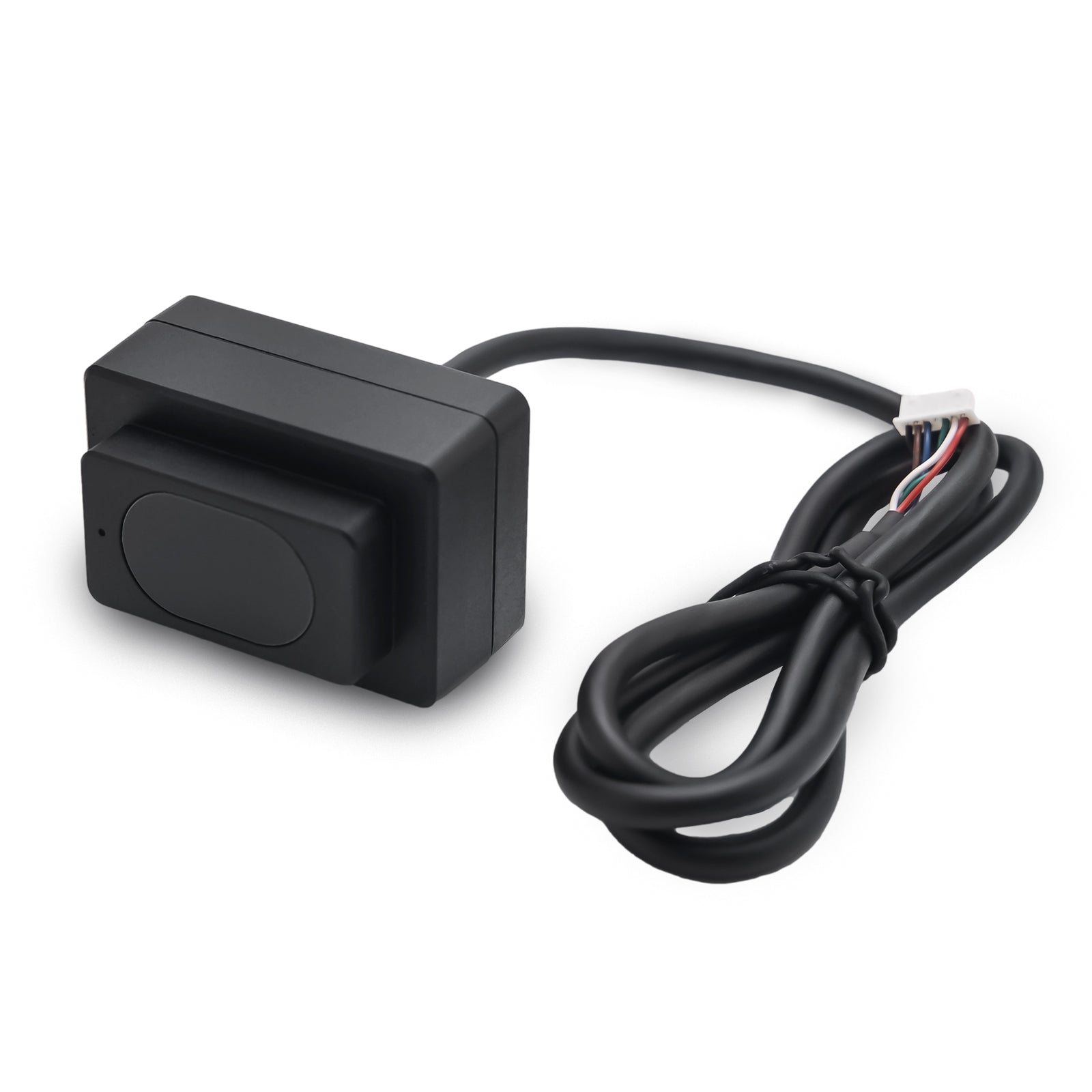

Makerfocus TFmini-i Single Point Lidar Range Finder Radar Distance Micro Lidar Module 0.1-12M Obstacle Avoidance Sensor Small Module 100Hz 7-30V Input Supports CAN RS485 Interface

Features:
Upgrade, TFmini-i is an upgraded single point LiDAR based on TFmini-S. Communication interface, input voltage and reverse protection make it compatible with different industrial applications.

Note: This product can only be maintained by qualified professionals, and only original replacement parts can be used to ensure its performance and safety.
Product operating temperature is -4°F to 140°F; please do not use it outside this temperature range to avoid danger.
Product storage temperature is -10℃ to 167℉; please do not store it outside this temperature range to avoid danger.
Conditions for possible failure of the product: When the lens of the transmitter and receiver of the product is covered by dust, there is a danger of failure. Please keep the lens clean, as there is a danger of malfunction if the product is completely submerged in water. Do not use underwater. By detecting objects with high reflectivity (such as mirrors and smooth tiles), this product may have a high risk of failure.

Technical Specifications:
Operating Range: 1m ~ 12m @ 90% reflectivity; 0.1 ~ 7m @ 10% reflectivity;
0.1m ~ 12m @ 90% reflectivity (70Klux) 0.1 ~ 7m @ 10% (70Klux) Accuracy 1: ±-6m) ±1% @ (6m-12m).
Distance Resolution: 1cm Frame Rate: 100 Hz.
Ambient Light Immunity: 70 Klux.
Operating Temperature: -4℃ ~ 60℃
Enclosure Rating: IP65

Package Including：
1*TFmini-i Lidar Module
