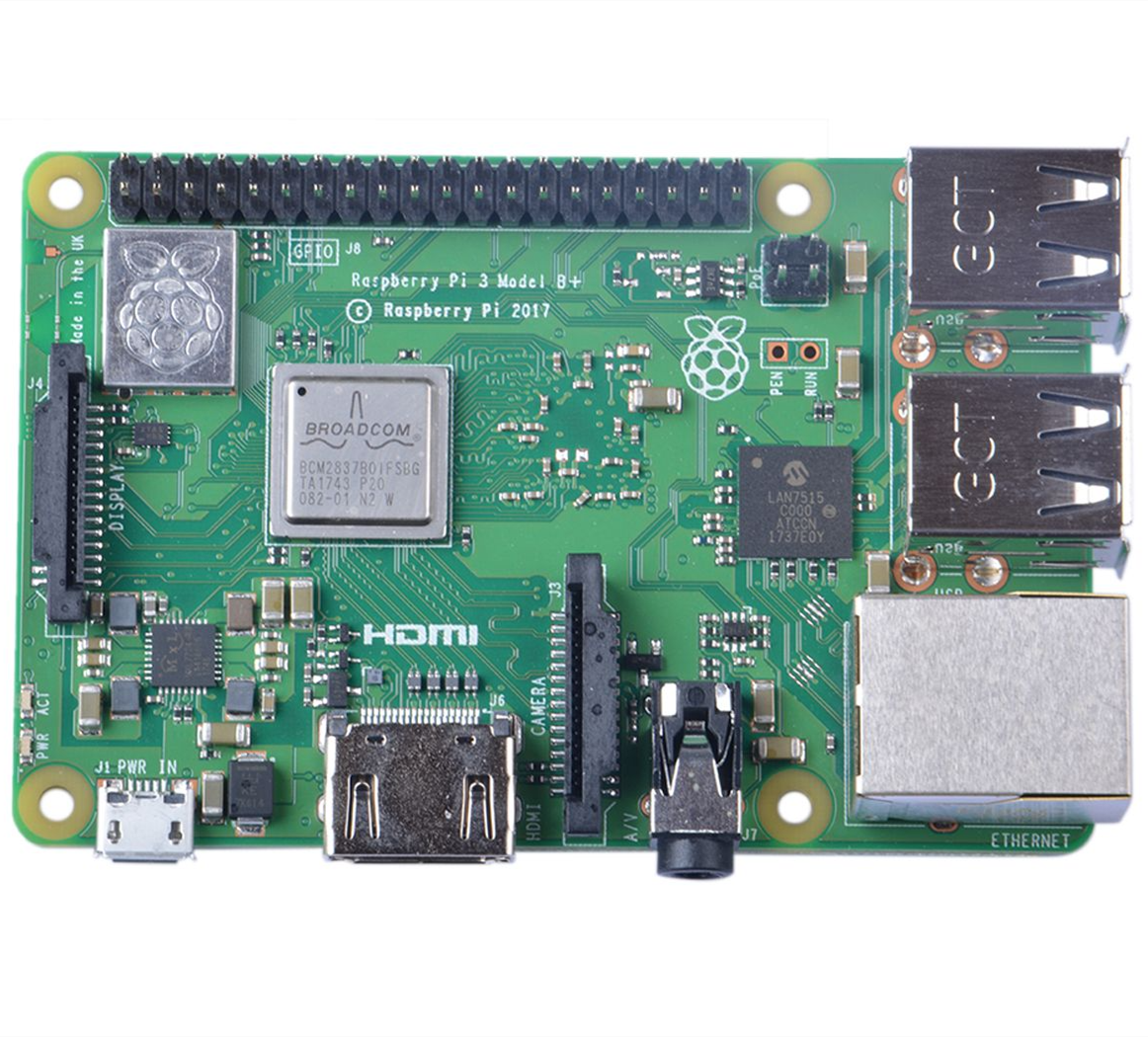

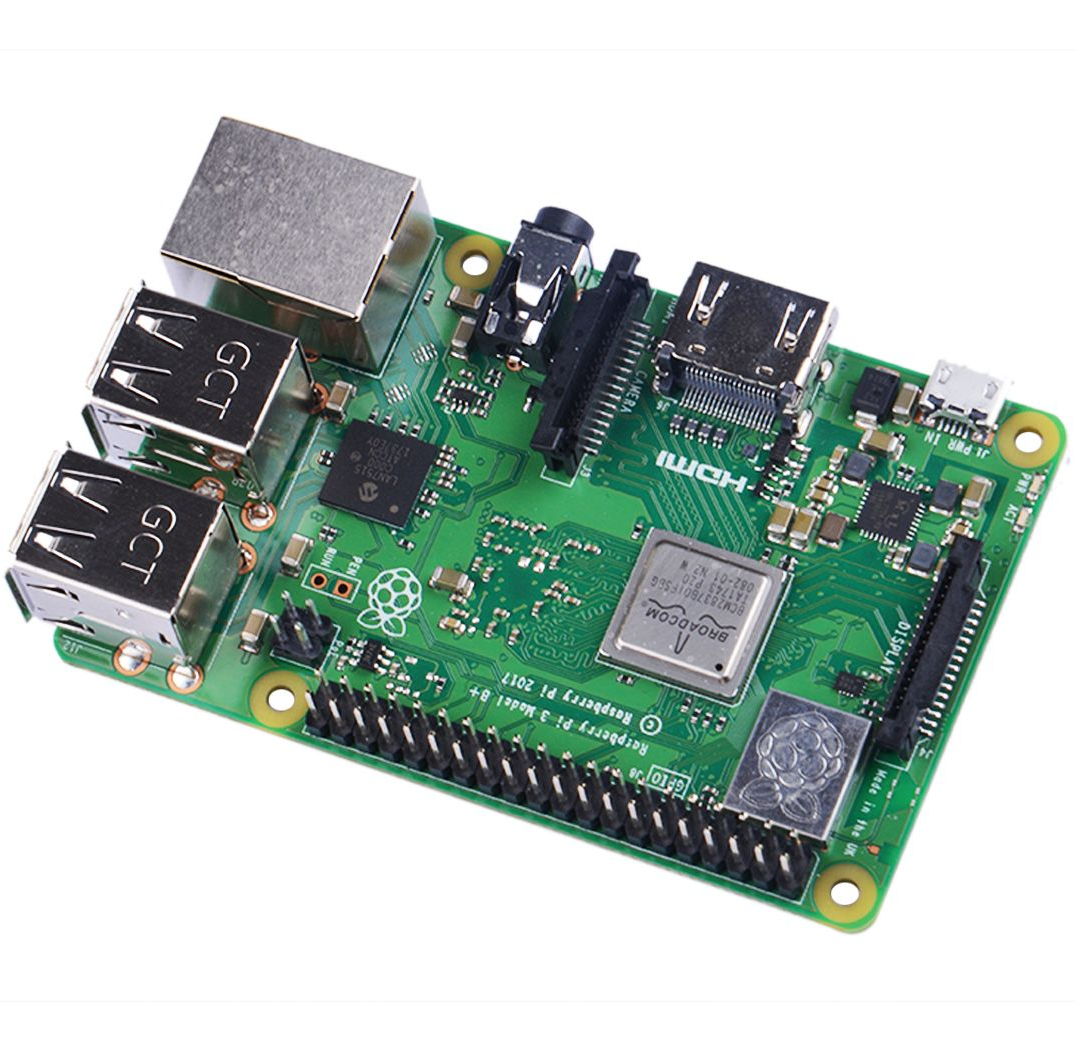

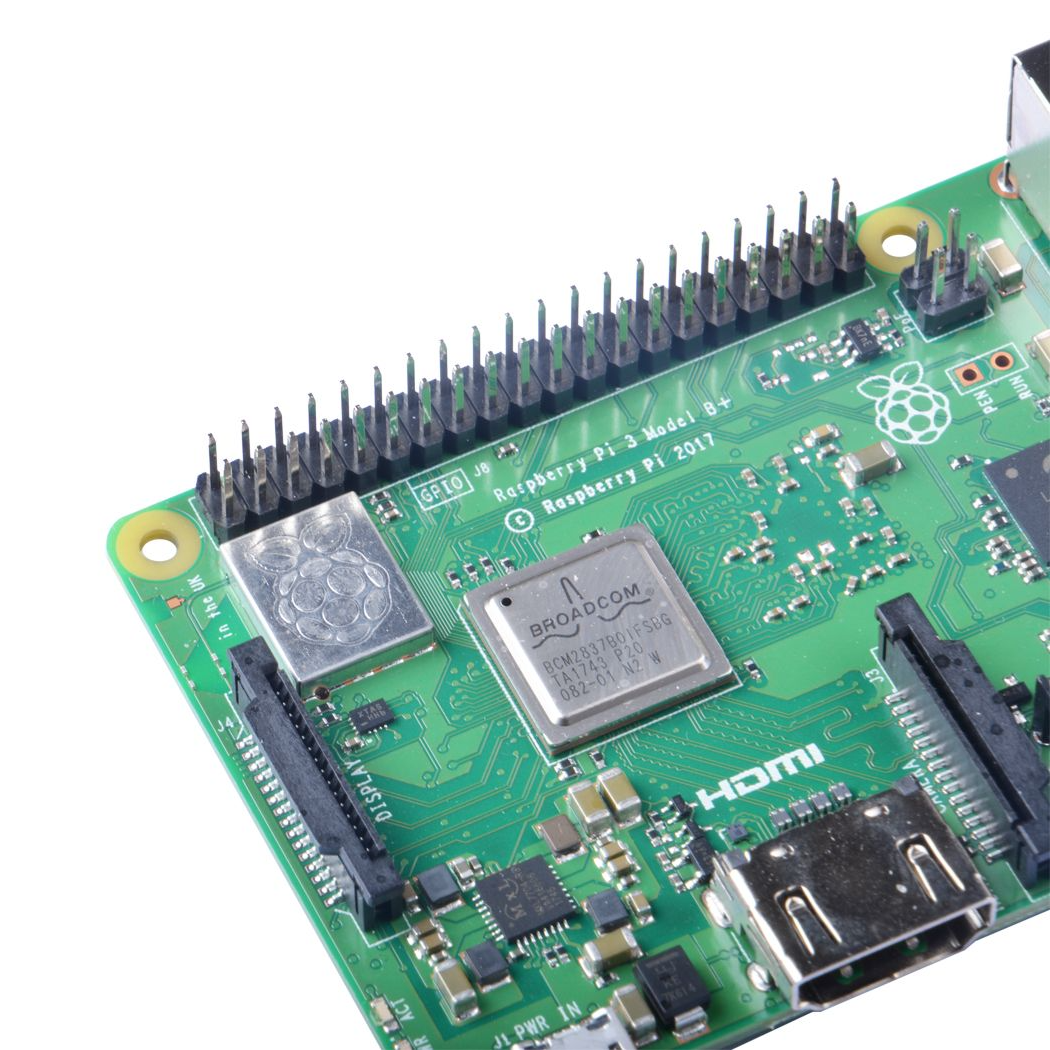

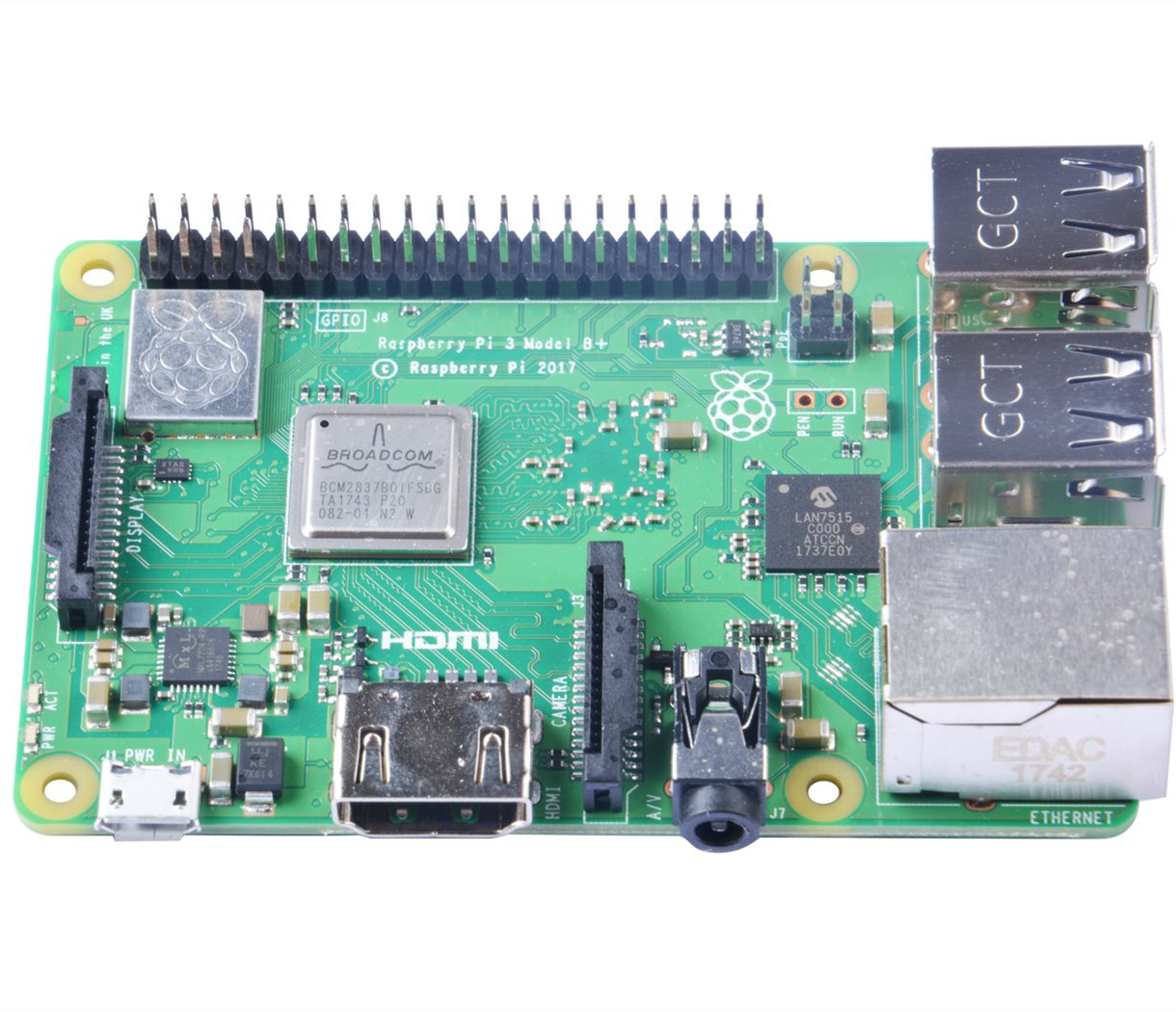

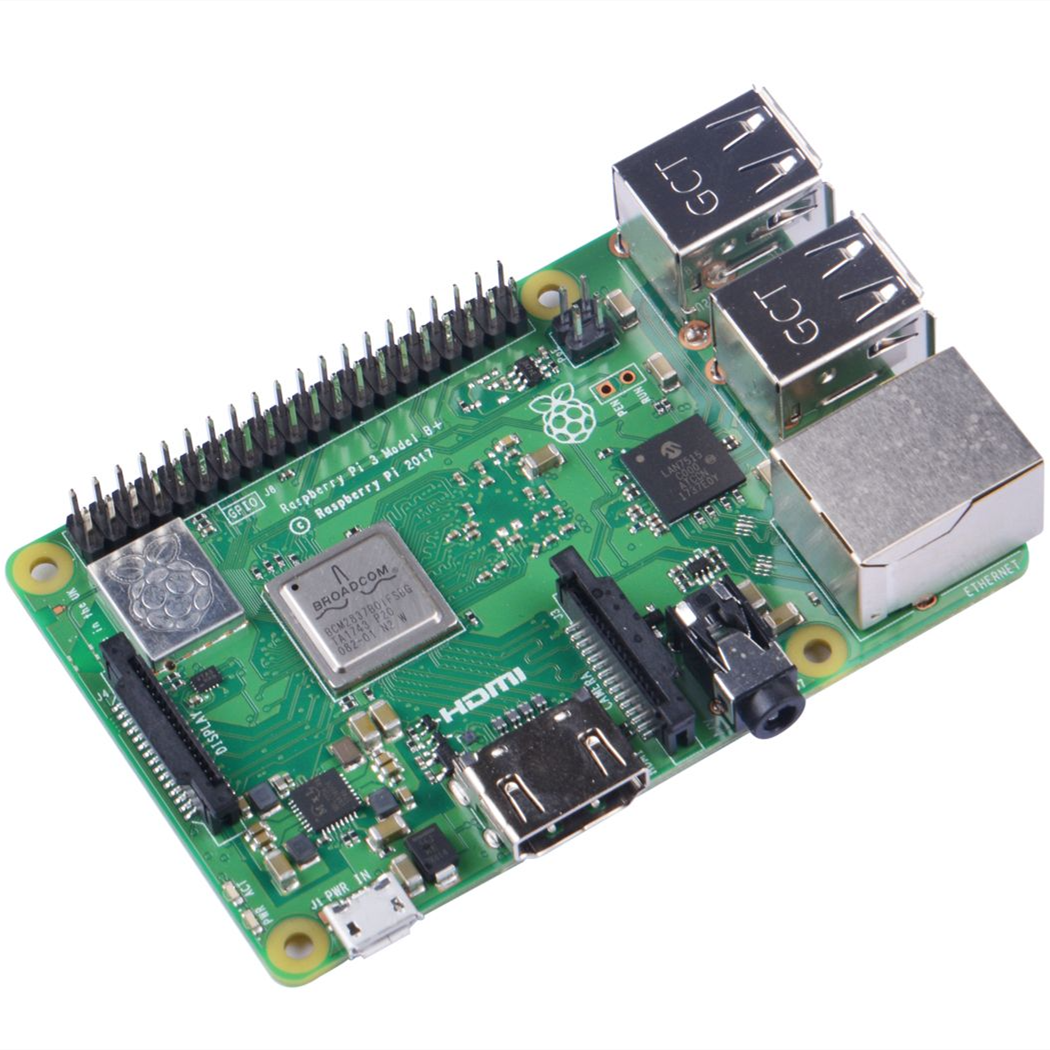

Raspberry Pi 3 Model B+

Raspberry Pi 3 Model B+

PRODUCT DETAILS
The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.

The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

Technical details：
Dimensions:120mm x75mm x34mm
Weight:G.W 75g
Battery:Exclude
Processor:Broadcom BCM2837B0, Cortex-A53 64-bit SoC@1.4GHz
Memory:1GB LPDDR2 SDRAM

Connectivity:
2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE;
Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps);
4 × USB 2.0 ports

Access:Extended 40-pin GPIO header
Video & sound:
1×full size HDMI;
MIPI DSI display port;
MIPI CSI camera port;
4 pole stereo output and composite video port

Multimedia：
H.264, MPEG-4 decode (1080p30);
H.264 encode(1080p30);
OpenGL ES 1.1, 2.0 graphics

SD card support:
Micro SD format for loading operating system and data storage

Input power:
5V/2.5A DC via micro USB connector; 5V DC via GPIO header; Power over Ethernet (PoE)–enabled (requires separate PoE HAT)

Environment:Operating temperature, 0–50°C
Production lifetime:The Raspberry Pi 3 Model B+ will remain in production until at least January 2023.

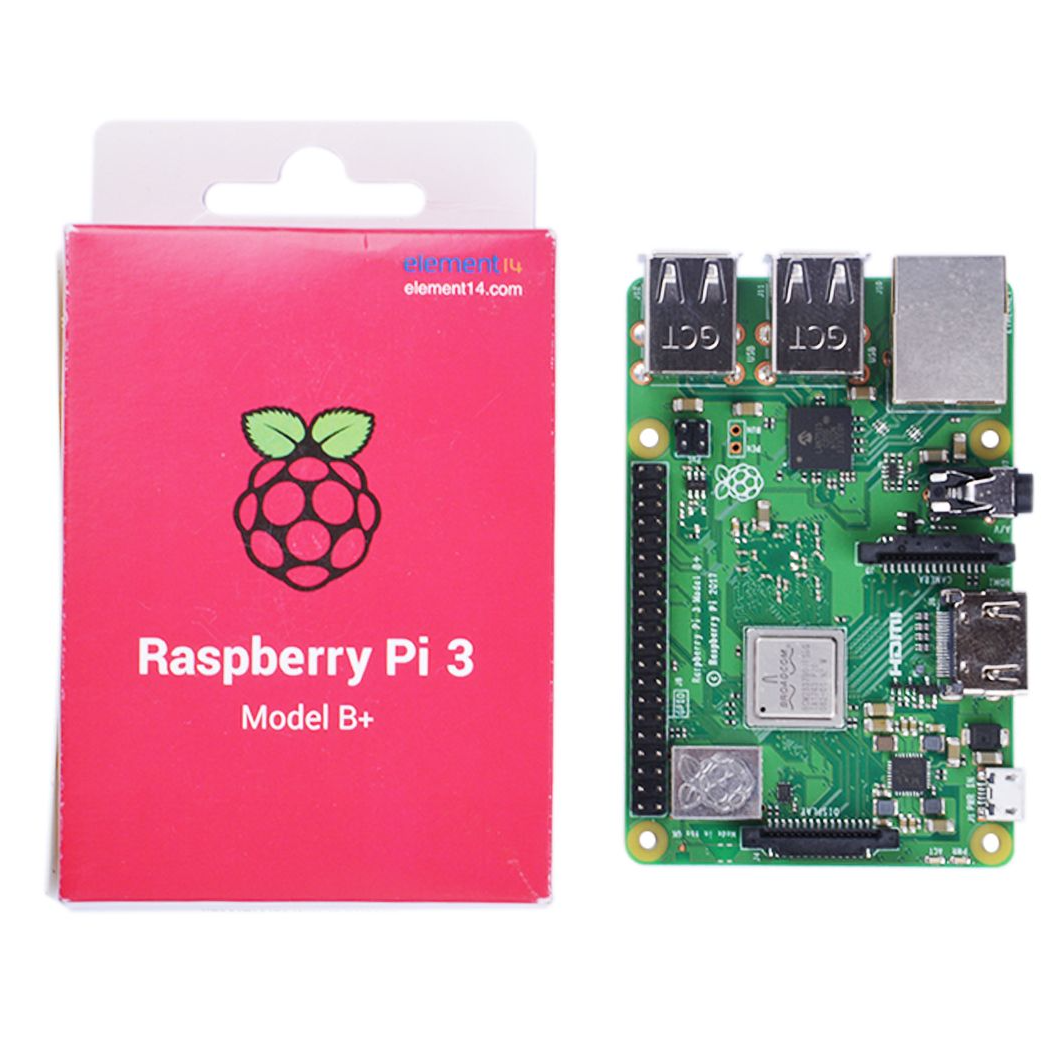

Package Included:
1*Raspberry PI 3 Model B Plus
