Digital Servo 35KG Full Metal Gear High Torque Waterproof DS3235 with 25T Servo Arm for RC Car

MakerFocus

  • $26.99
    Unit price per
  • Save $2.99
Shipping calculated at checkout.


[New Model]: DS3235 35kg waterproof digital servo. Can be widely used for robots, mechanical arms, climbing cars, remote control boat, remote control aircraf etc.
[Large Torque]: Maximum torque can up to 35kg.cm (6.8V)
[High Performance]: Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability, low noise, fast heat dissipation.

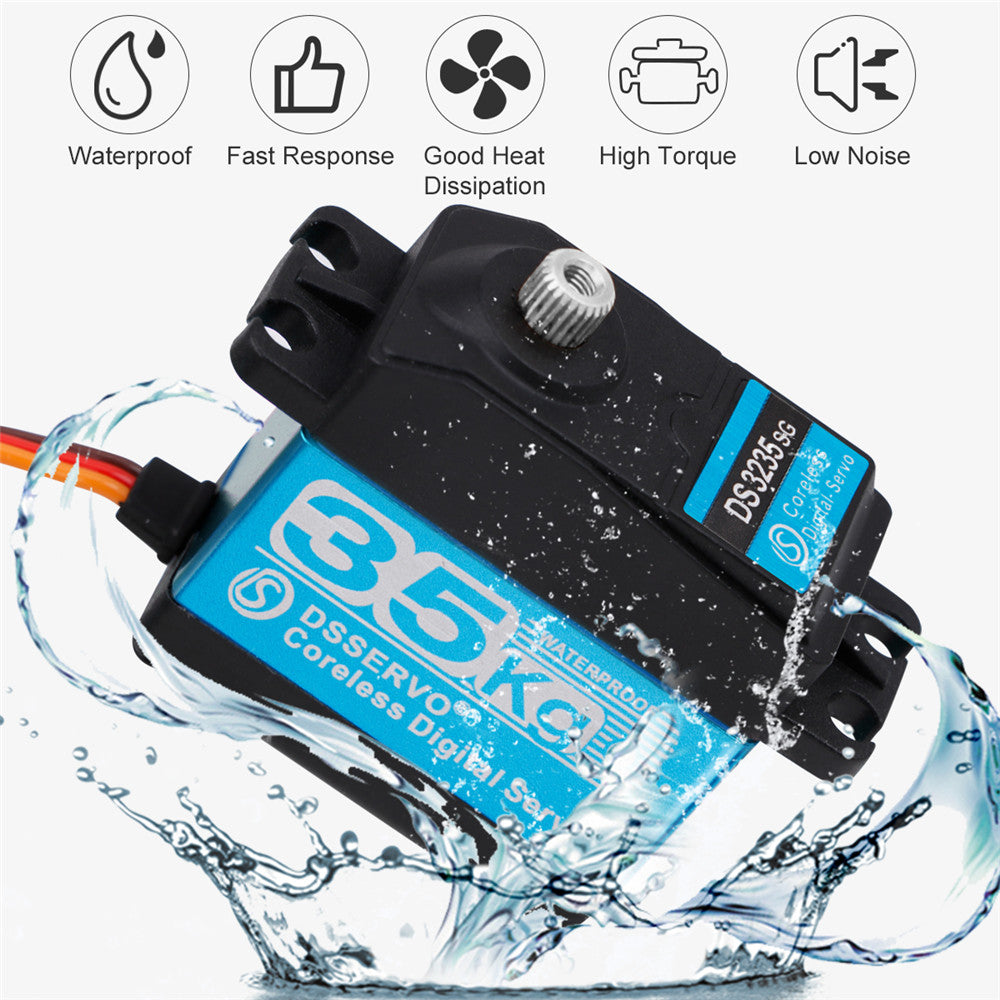

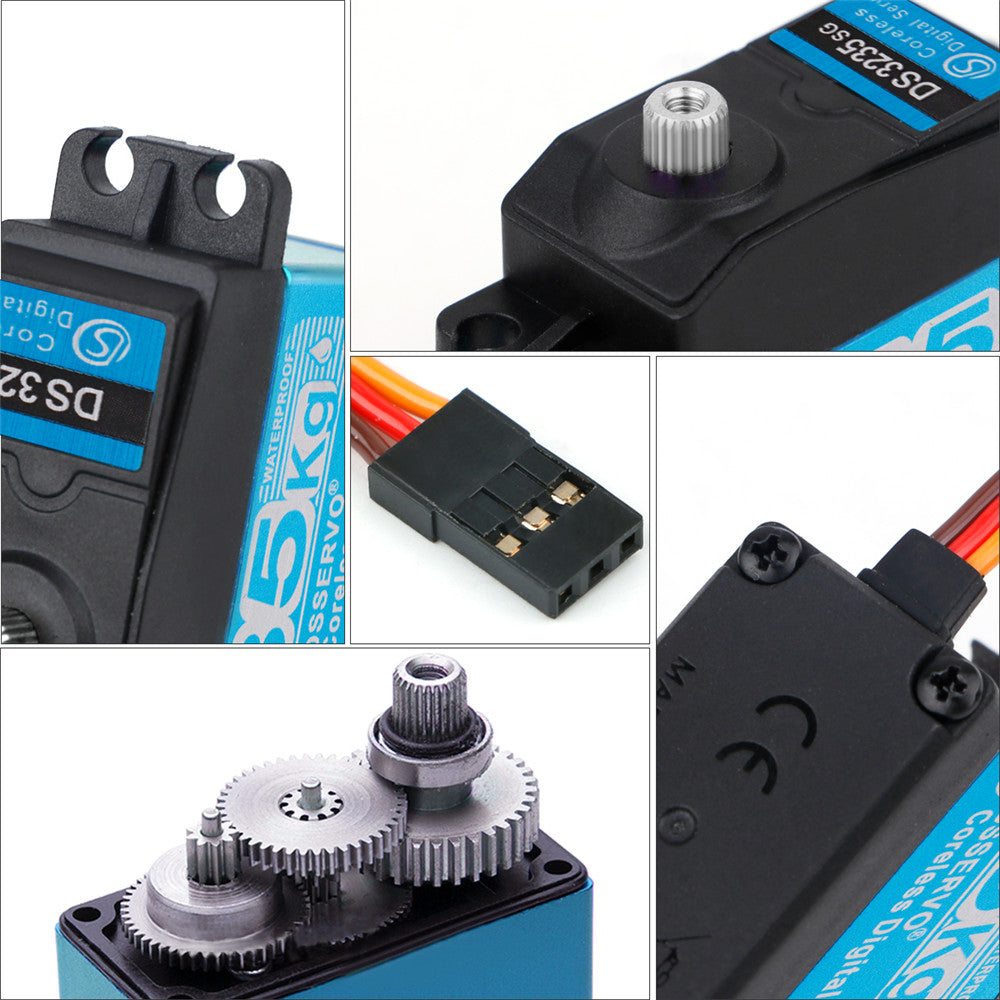

[High Quality]: Waterproof rubber seals screws, made of first-grade material ensure the longevity of the products. High-precision metal gear with hard anodizing for better accuracy and longer service life. CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.

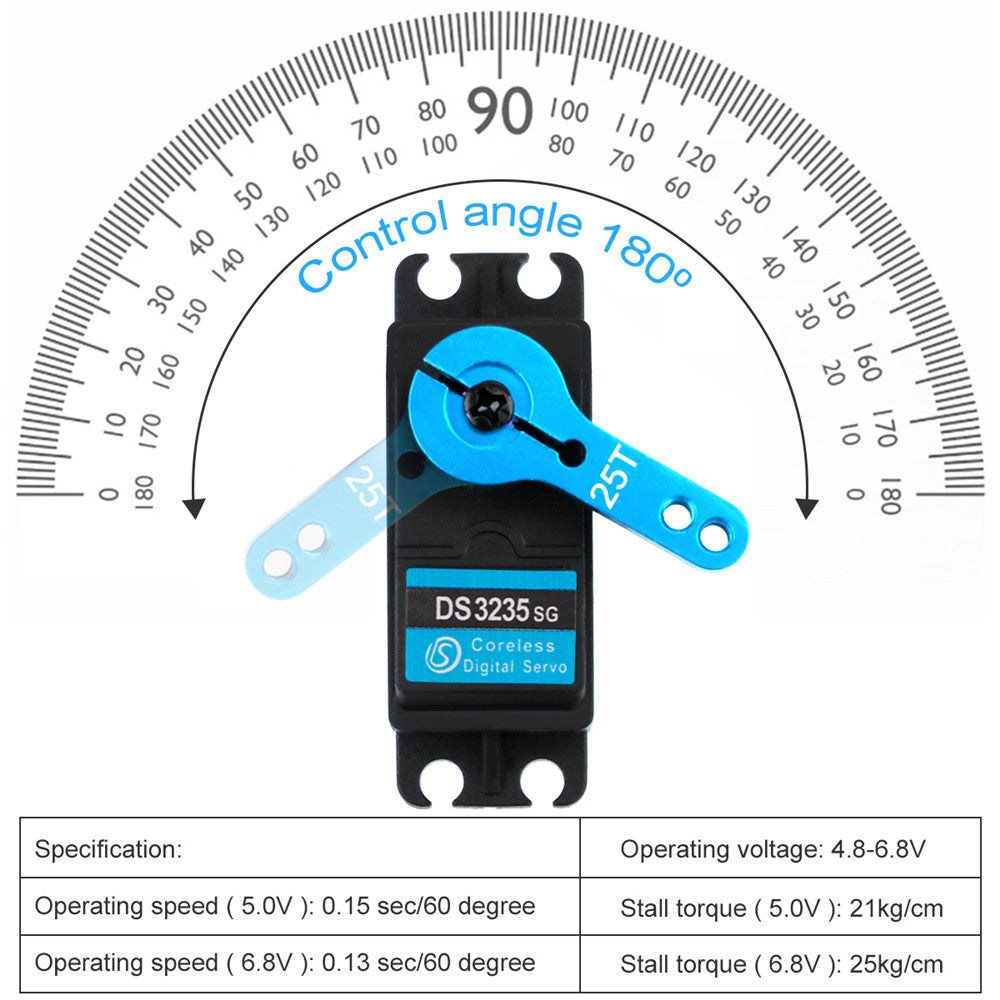

[High Rotation]: 180 degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off, perfect for robot joint activities.


Product description
DS3235 RC servos are designed for remotely operating model vehicles,such as cars, airplanes and robots. It provides the functionality of a light weight standard-sized servo, HV high torque, waterproof, sensitive and responsive. It is tailored for RC hobbyist to provide different experience and delight.

Electrical Specification:
Operating voltage range: 4.8-6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 35kg/cm

Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 180° (when 500-2500μsec)
Dead band width: 3μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500-2500μsec)

Product Specification:

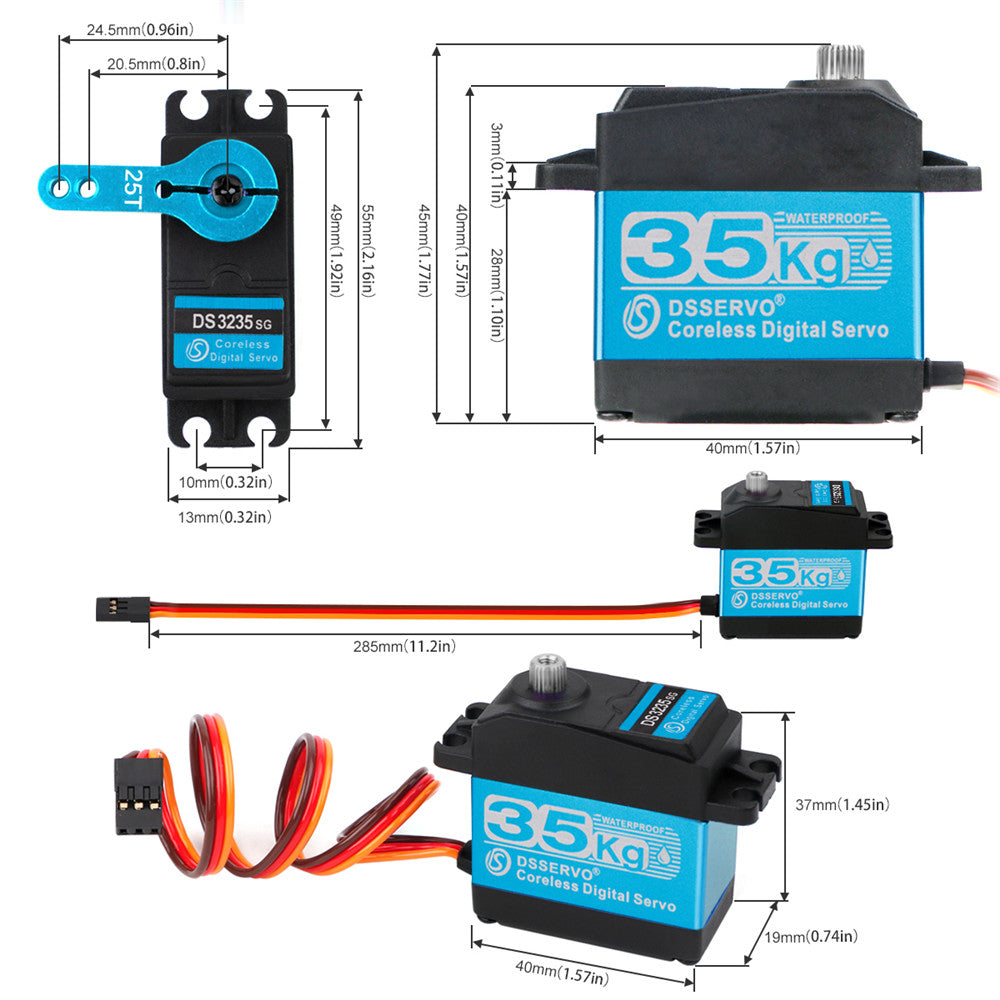

Size: 40 * 20 * 38.5mm
Weight: 80g

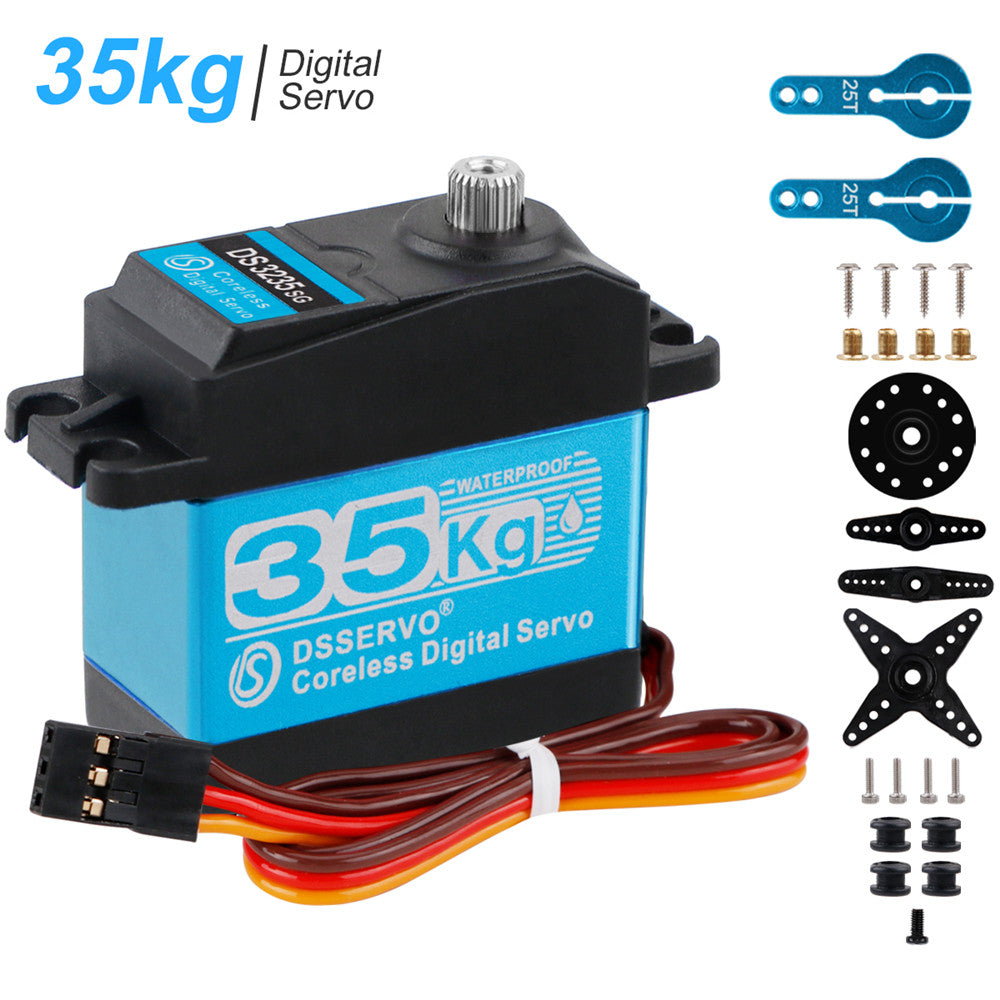

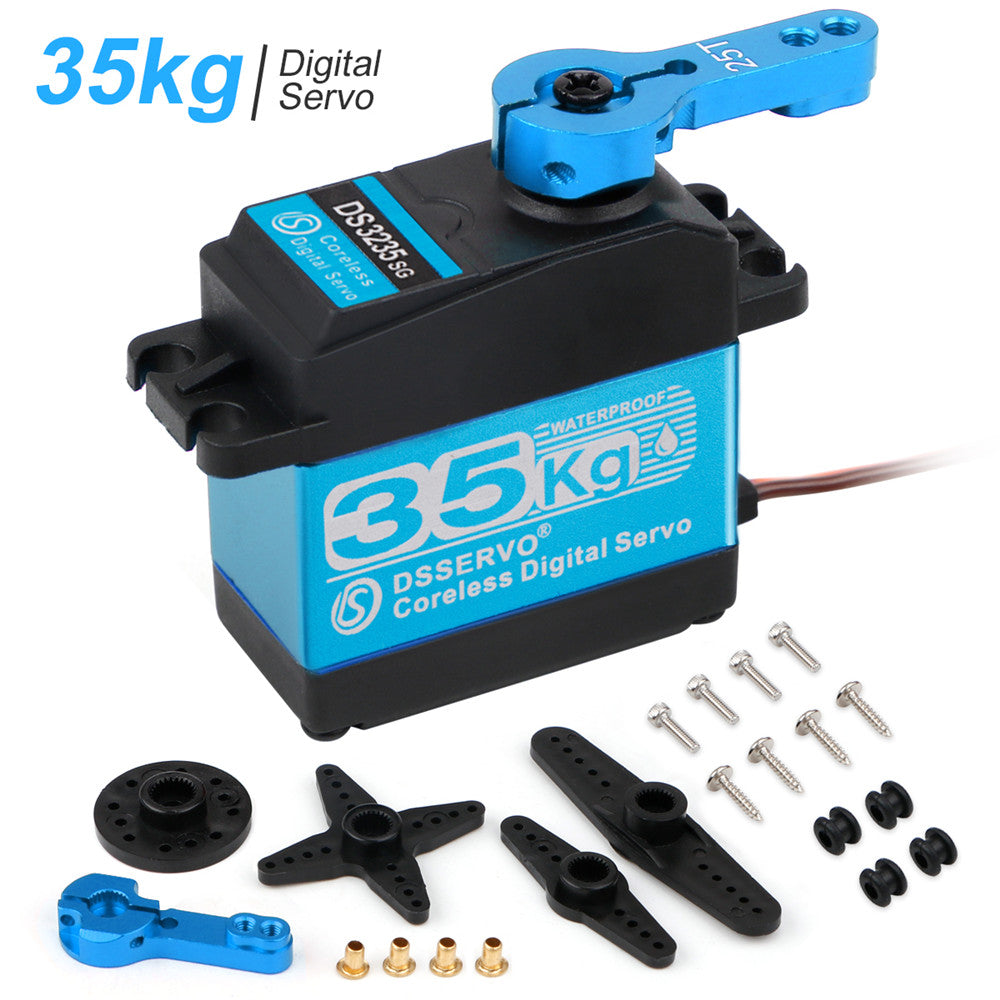

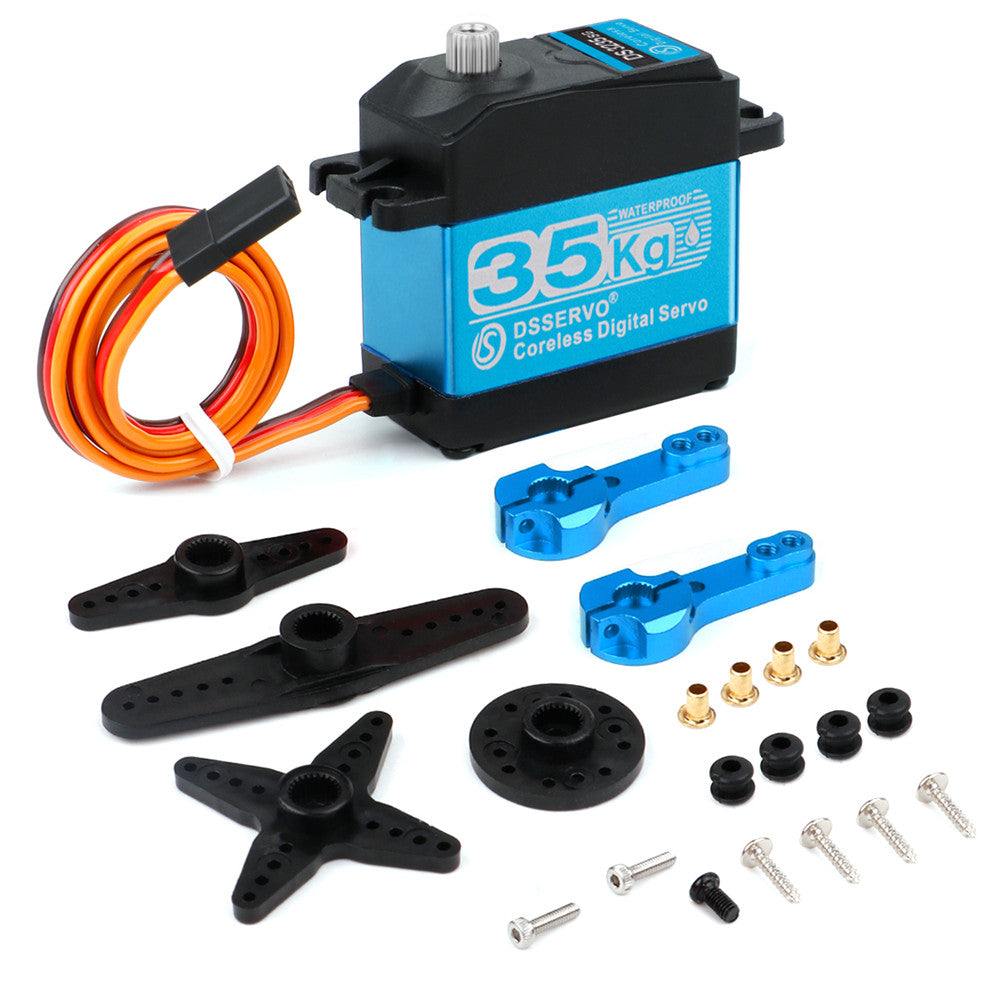

Package Including
1 * DS3235 35kg Digital Servo
2 * 25T Adjustable metal servo arm
1 * Accessories set as shown
