MakerFocus ESP32 LoRa Development Board WIFI Bluetooth with 0.96inch OLED Display and 2dBi Antenna
ESP32 LoRa Development Board
Description:
WIFI Kit series is the new development cost-effective networking program of our company, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
This product is based on the WIFI Kit 32 added SX1276 chip, that is, LoRa trade; remote modem, 868/915MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.8Km).
Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.
Specification:
Operating voltage: 3.3V to 7V
Operating temperature range: -40 C to + 90 C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Receiver sensitivity up to - 139 dBm
UDP continues to throughput by 135 Mbps
868-915MHz Built-in Spring Antenna:
Connector type: ipex
Band definition: 868-915MHz
Standing wave ratio: lt;= 1.5
Gain: 3dBi
Maximum power: 10W
Input impedance: 50 Omega;
Packing List:

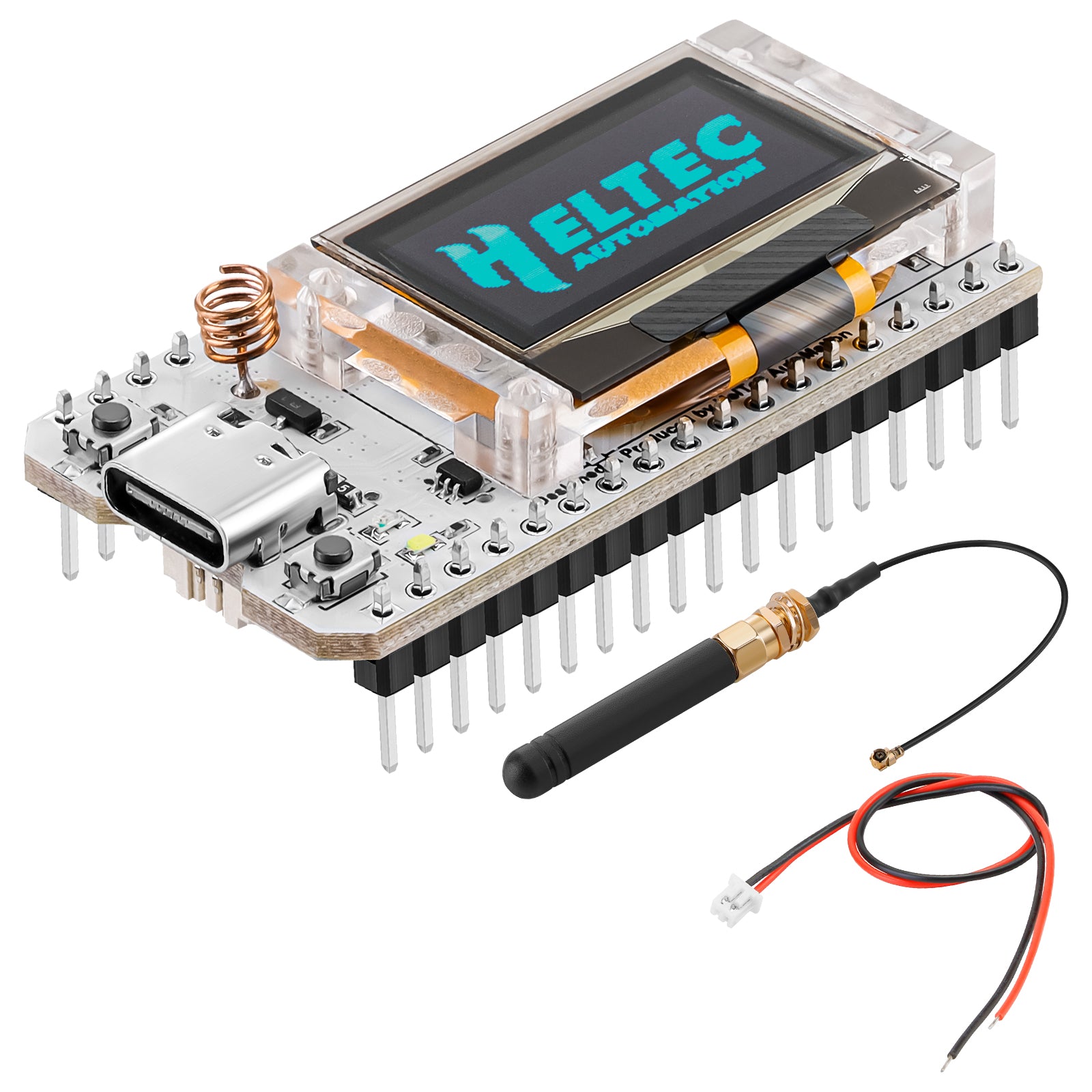

1 * ESP32 Development Board with OLED
1 * 868/915MHz Antenna
1 * Pin sticker
2 * Pin headers
★ Documents: https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series.
★Library: https://github.com/HelTecAutomation/Heltec_ESP32;
★ESP32 LoRaWAN library: https://github.com/HelTecAutomation/ESP32_LoRaWAN;
★Adafruit CircuitPython TinyLora library: https://github.com/fantasticdonkey/uLoRa;
★Arduino development environment: https://docs.heltec.cn/#/en/user_manual/how_to_install_esp32_Arduino;
★Schematic Diagram: https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series/blob/master/SchematicDiagram/WiFi_LoRa_32(V2)/WIFI_LoRa_32_V2(868-915).PDF.
★Communication distance test-YouTube: https://www.youtube.com/watch?v=sUsJuhakQ0E&feature=youtu.be;
★https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series;
★If you want to choose CP210X driver, this is the Link for download CP210X driver: http://www.heltec.cn/the-product-data-of-wifi-kit-series-download/?lang=en
★Note: This item comes unassembled, soldering of headers is required. Lithium battery is not included.
★Upgrade ESP32 lora development board with 868/915MHz antenna, it supports Sniffer, Station, softAP and Wi-Fi Direct modes. If you want to use the Lora feature, you need two esp32 lora modules. One is used to send messages and one is used to receive messages.
★High reliability, transmission distance (measured open area communication distance 2.8Km); Receiver sensitivity up to - 139 dBm, UDP continues to throughput by 135 Mbps.
★Board friendly, space of pins is 2.54*23mm, fit to breadboard. 0.96-inch blue esp32 oled display, lithium battery charging circuit and interface, CP2102 USB to serial chip.
