Raspberry Pi 4 GPIO Expansion Board Breakout GPIO Screw Terminal Hat
MakerFocus Raspberry Pi 4 GPIO Expansion Board Breakout GPIO Screw Terminal Hat Compatible with Raspberry Pi 4b 3b+ 3b 2b b+ Raspberry Pi Zero and Zero W
Useful link: https://wiki.52pi.com/index.php/GPIO_Screw_Terminal_Hat_SKU:_EP-0129; https://wiki.52pi.com/index.php/File:Youtube.jpeg.
Easy to Assemble - This is a very beautiful screw terminal expansion version, which is expanded for the pins of the Raspberry Pi. Our raspberry pi hat is convenient for everyone to connect when doing electronic experiments.
Observe GPIO Status - The status information of the pin is displayed. When the GPIO pin is operated and effective in the terminal, the LED matrix on the right side of the terminal will display the status of the GPIO pin, and some distinctions are made in the color selection of the LED lights.
Fine Terminal Pinout - There is the pin out information of the GPIO pin on the top of the terminal and on the side.

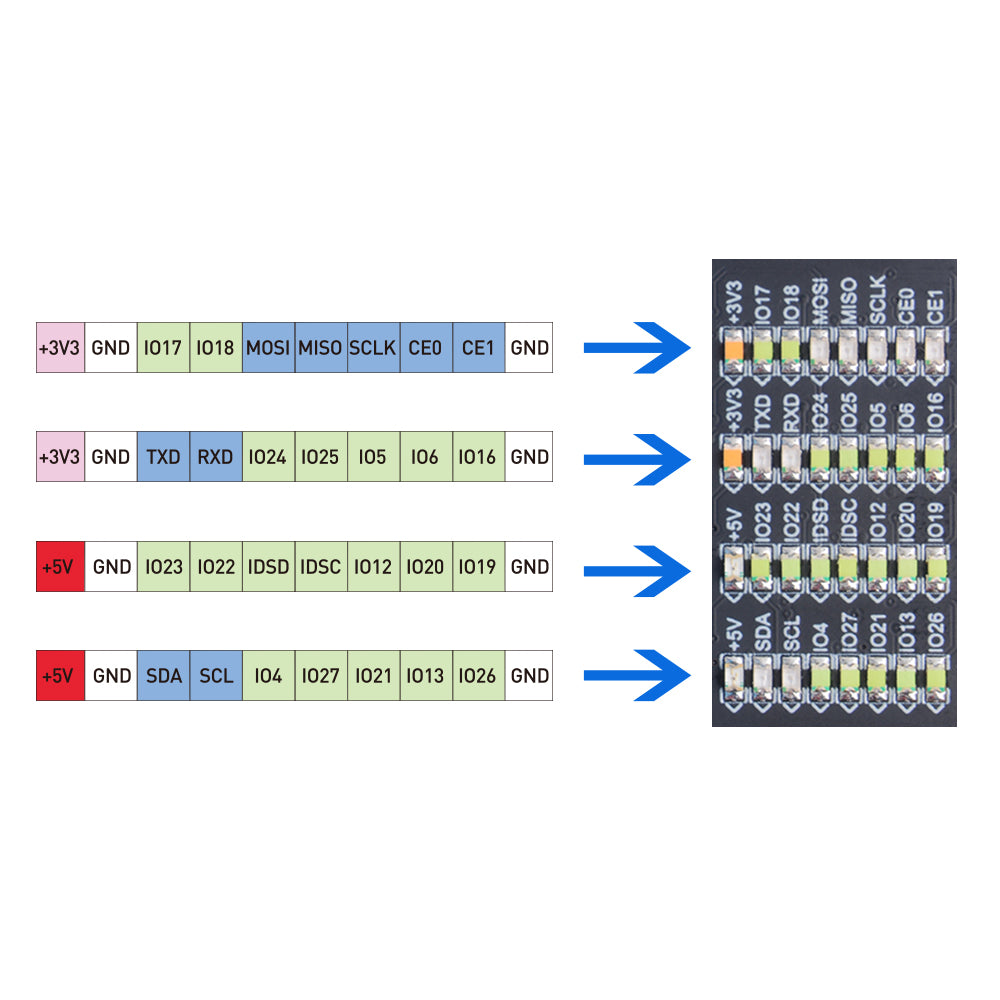

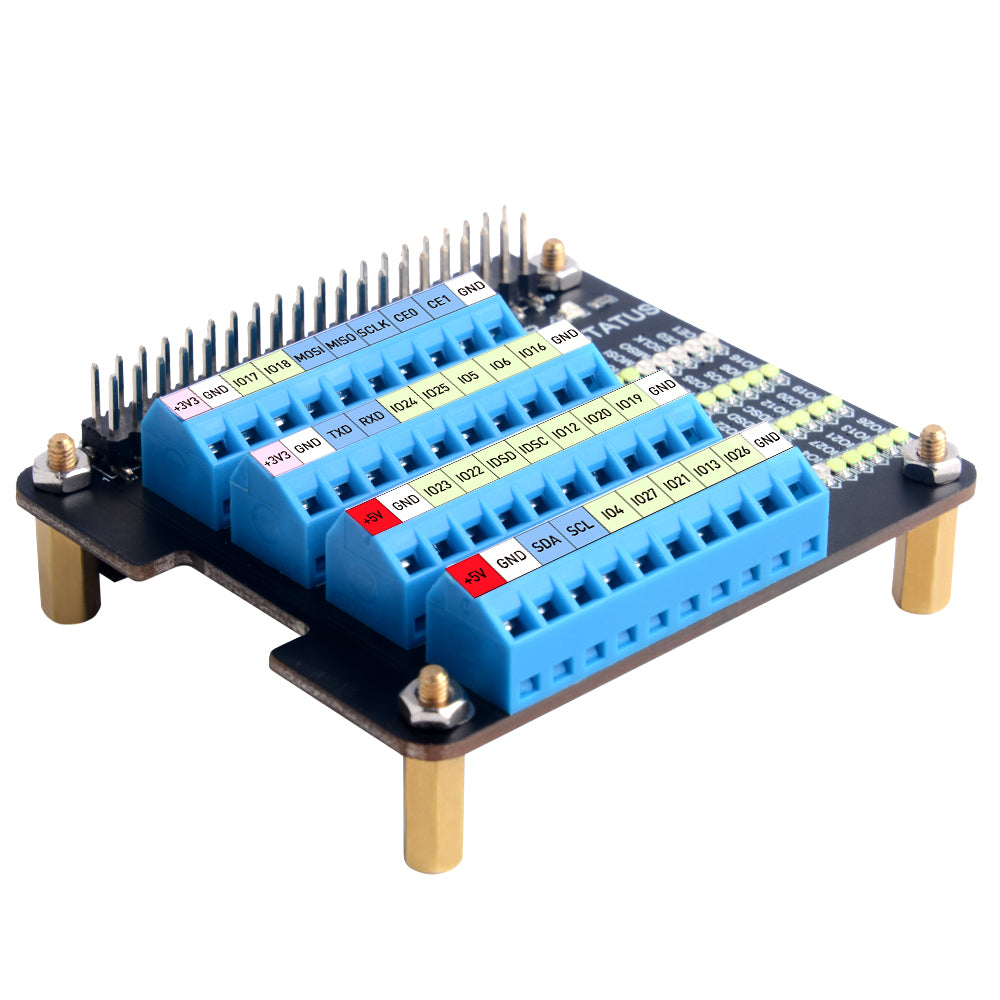

Different Color LED Indicators - For example, the 5V power light is red, while the 3.3V power light is pink, the light of the special function pin is dark blue, and the indicator light of the ordinary GPIO pin is light blue
Product description
Description:
This is a very beautiful screw terminal expansion version, which is expanded for the pins of the Raspberry Pi.
It is convenient for everyone to connect when doing electronic experiments.

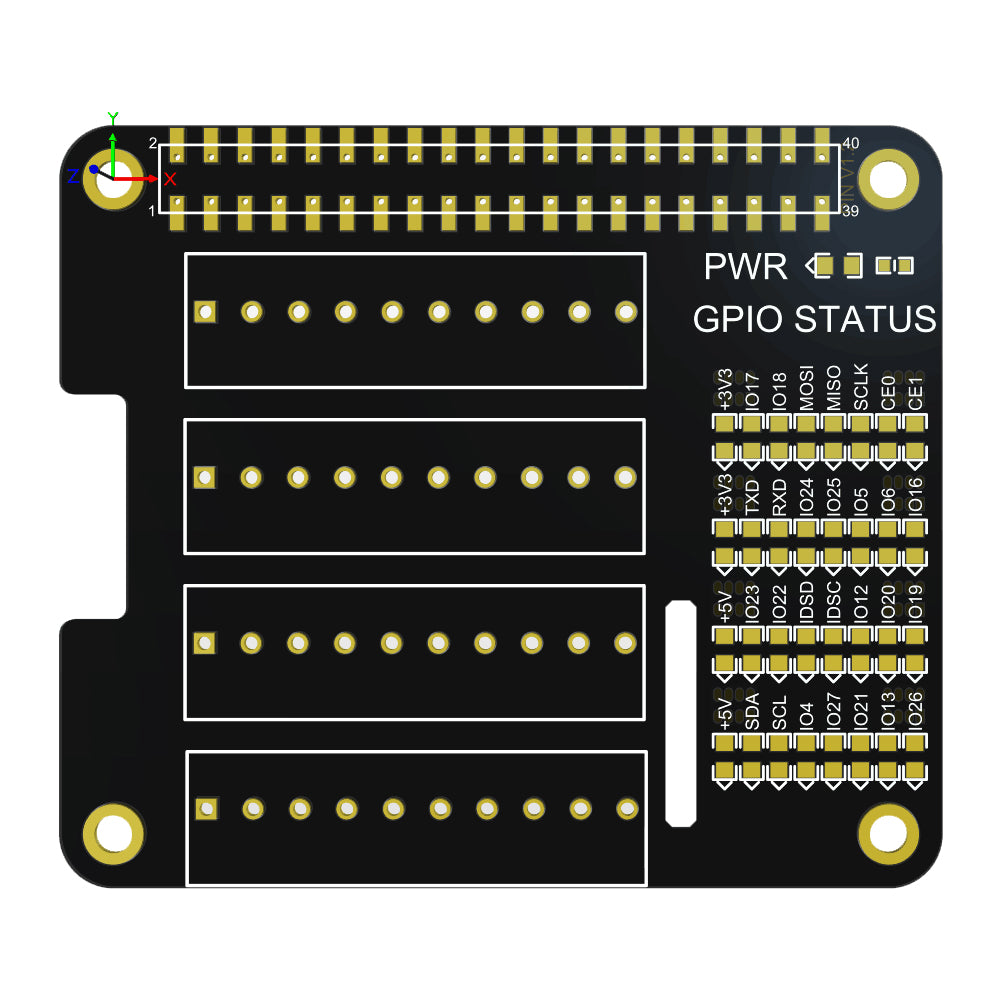

There is the pin out information of the GPIO pin on the top of the terminal and on the side.
The status information of the pin is displayed. When the GPIO pin is operated and effective in the terminal, the LED matrix on the right side of the terminal will display the status of the GPIO pin, and some distinctions are made in the color selection of the LED lights.
For example, the 5V power light is red, while the 3.3V power light is pink, the light of the special function pin is dark blue, and the indicator light of the ordinary GPIO pin is light blue, which is convenient and convenient for connection Observing the state is a good helper for electronic experiments.
Features:
Easy to assemble
Observe GPIO status
Screw terminal
Fine terminal Pinout
Different color LED indicators
Application: It can be used for raspberry pi 4 Model B, Raspberry Pi 3 Model B+, Raspberry Pi 3 Model B, Raspberry Pi 2 Model B, Raspberry Pi Model B+, Raspberry Pi zero, Raspberry Pi zero W
Package Including:

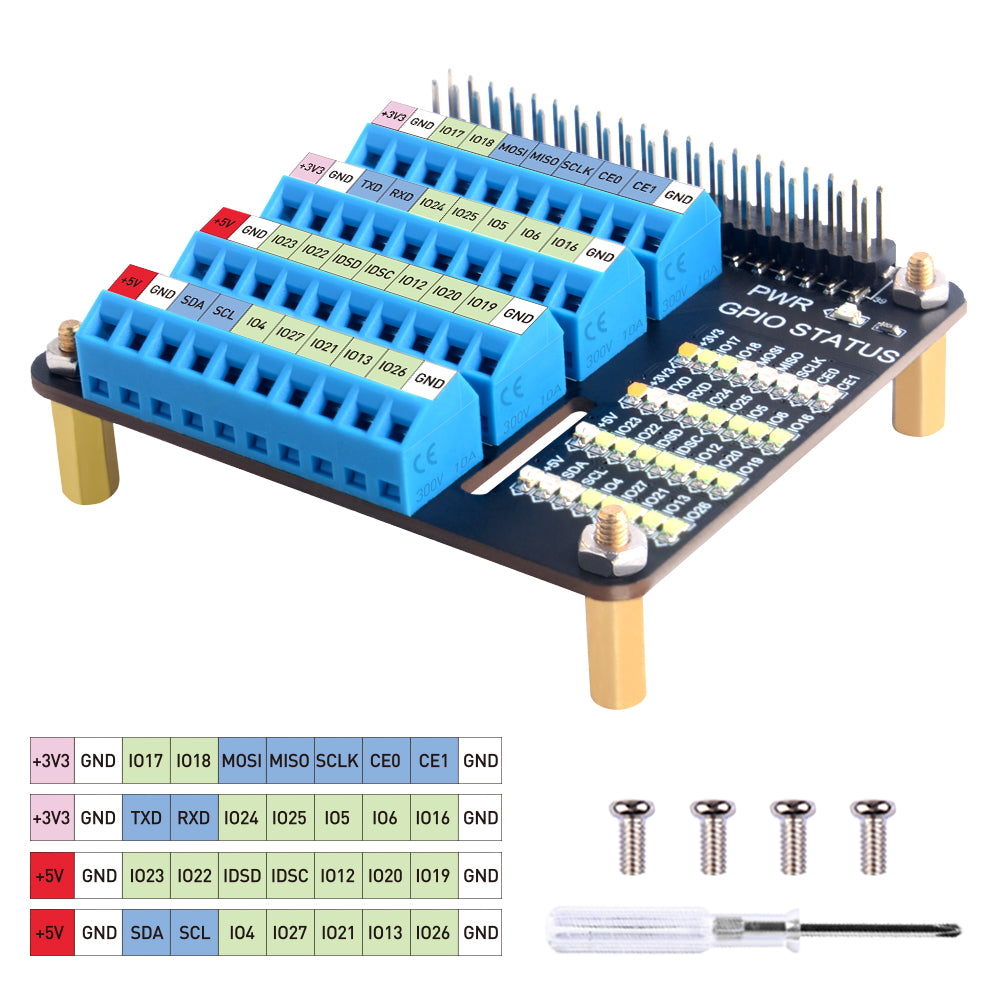

1 * GPIO Screw Terminal Hat
4 * M2.5 Copper pillar
4 * M2.5 Screws
4 * M2.5 Nuts
1 * Screw driver
1 * GPIO pinout tape
